Voute Smoking and Vaping Shelter

• UK Compliant Design
• Width: 2500mm
• Depth: 1560mm
• Height: 2540mm
• 80 x 80mm square steel tube posts
• Galvanised and painted in a choice of 10 colours
• 6mm anti-UV treated cellular polycarbonate panel ‘domed’ roof
• 40 x 60mm aluminium tube roof framing with dome supports from curved aluminium profiles
• 8mm safety glass front, side, and rear cladding panels
• Pinch-grip system for cladding for each replacement in case of vandalism
• Installed by concreting directly into the ground

Lead time: 6 weeks

Product Description

The Voute Smoking and Vaping Shelter is a robust and secure solution designed to provide a safe and comfortable space for smokers and vapers in compliance with UK regulations. This shelter offers a protected environment while keeping users safe from the elements. Whether in a workplace, public space, or outdoor facility, this shelter ensures that smoking and vaping areas are functional and well-equipped.

Key Features

• UK Compliant Design: Specifically designed to meet UK regulations for smoking and vaping areas, the Voute Smoking and Vaping Shelter is the ideal choice for businesses and public spaces.
• Dimensions: The shelter features compact dimensions of 2500mm in width, 1560mm in depth, and 2540mm in height, providing ample space while remaining unobtrusive and effective for the designated area.
• Durable Steel Frame: The shelter is constructed with strong 80 x 80mm square steel tube posts that are galvanised and painted in a choice of 10 colours. The steel frame ensures that the shelter remains durable and resistant to harsh weather conditions.
• UV-Protected Polycarbonate Roof: The shelter is equipped with a 6mm anti-UV treated cellular polycarbonate "domed" roof, which offers protection from UV rays, rain, and other elements while ensuring longevity.

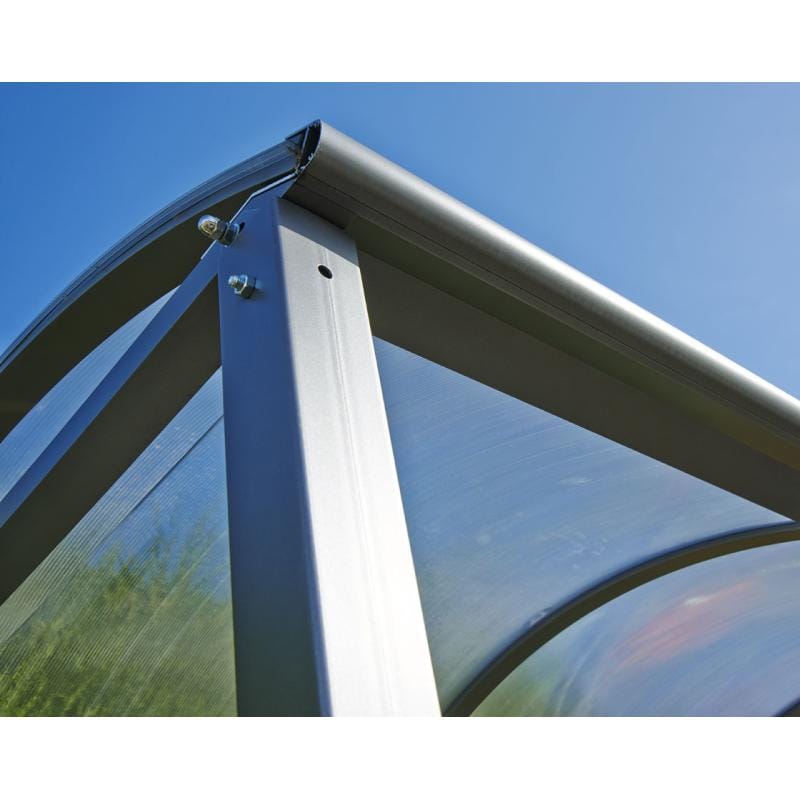

• Aluminium Framing: The Voute Smoking and Vaping Shelter includes 40 x 60mm aluminium tube roof framing with curved aluminium profiles that support the dome for added strength and stability.
• Safety Glass Cladding: The shelter features 8mm safety glass for the front, side, and rear cladding panels, offering a secure and visually appealing enclosure. The glass provides visibility while protecting users from wind and rain.

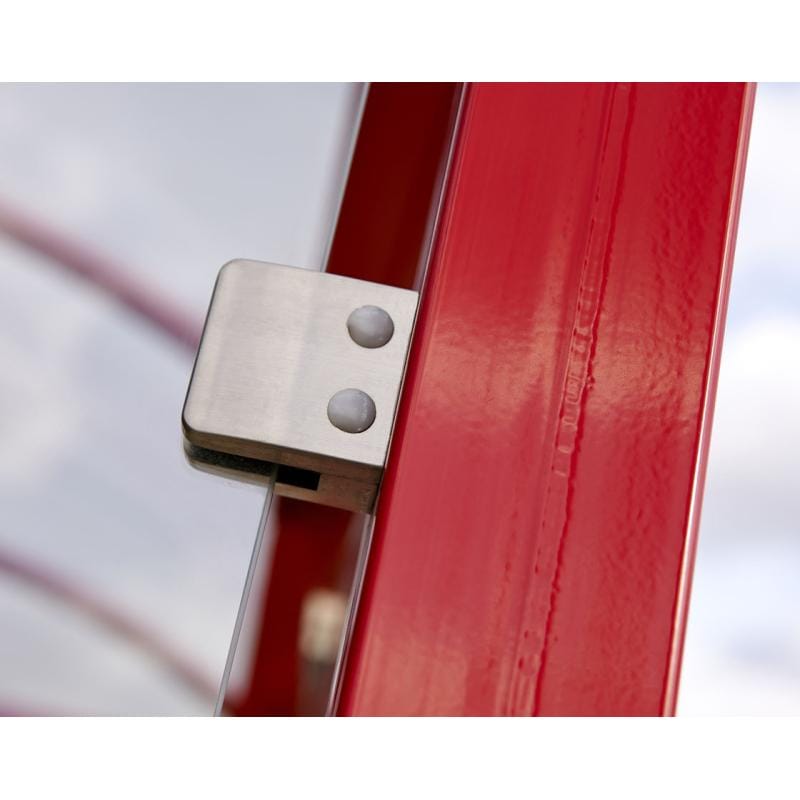

• Pinch-Grip Cladding System: The shelter uses a pinch-grip system for the cladding, which makes replacement panels quick and easy in case of vandalism, ensuring minimal downtime and continuous protection.
• Installation: The Voute Smoking and Vaping Shelter is installed by concreting directly into the ground, offering a permanent and secure fixture.

Customisation Options

• Colour: The shelter is available in 10 different galvanised and painted colour options, allowing it to blend seamlessly with your surrounding environment or corporate identity.

Why Choose the Voute Smoking and Vaping Shelter?

The Voute Smoking and Vaping Shelter offers a secure, comfortable, and compliant solution for smoking and vaping areas. With its durable steel frame, UV-resistant roof, and safety glass cladding, this shelter provides maximum protection while maintaining functionality. The pinch-grip system for cladding replacement ensures that the shelter remains operational even after any potential vandalism, while the variety of colour options allows for customisation to fit the environment.
