6mm polycarbonate panelled anti-UV treated roof with 40mm x 60mm framework
8mm safety glass rear and side cladding
Pinch-grip cladding attachment system made from Zamak alloy
Galvanised and painted framework in a choice of 10 colours
750 x 550mm time-table display case with anodised frame
Optional advertising lightbox 1710mm x 1160mm wide
Optional LED lighting (must be installed by qualified electrician)
Signwriting not included
Installed using base plated supplied
Lead time: 6 weeks
Width
Product Version
Code
Weight

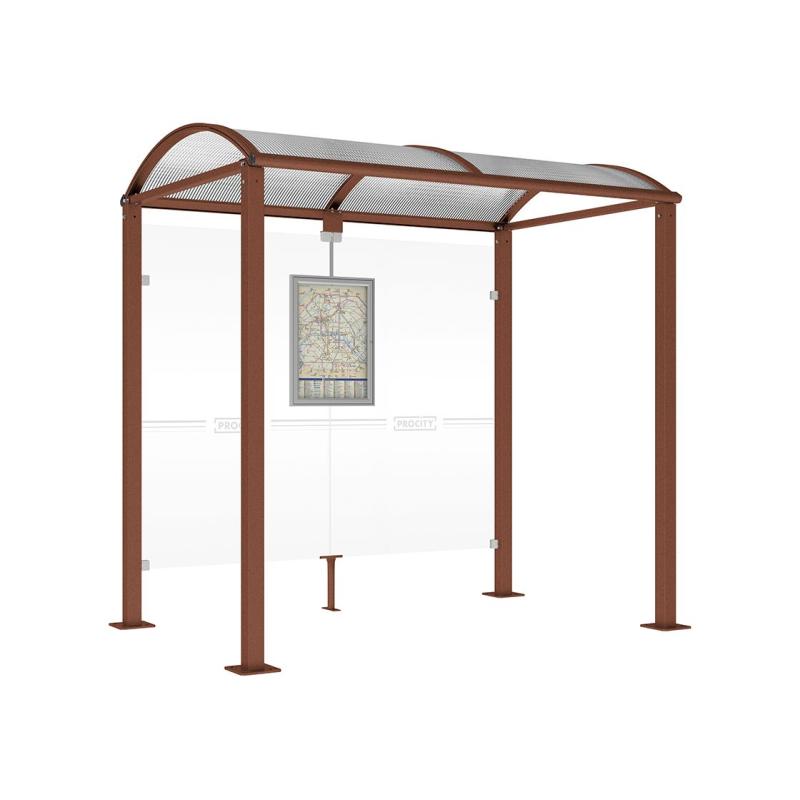

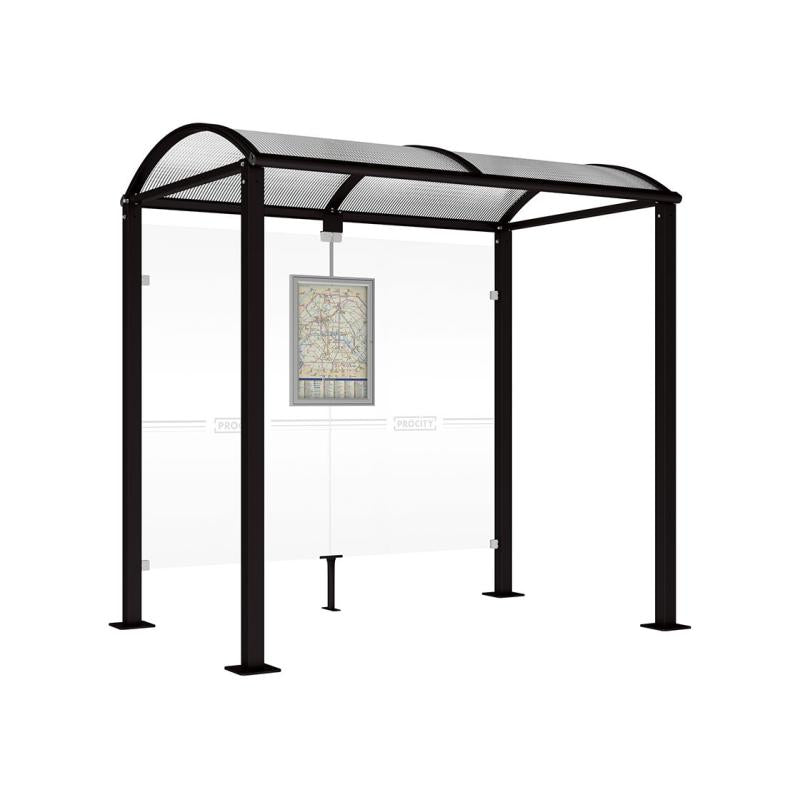

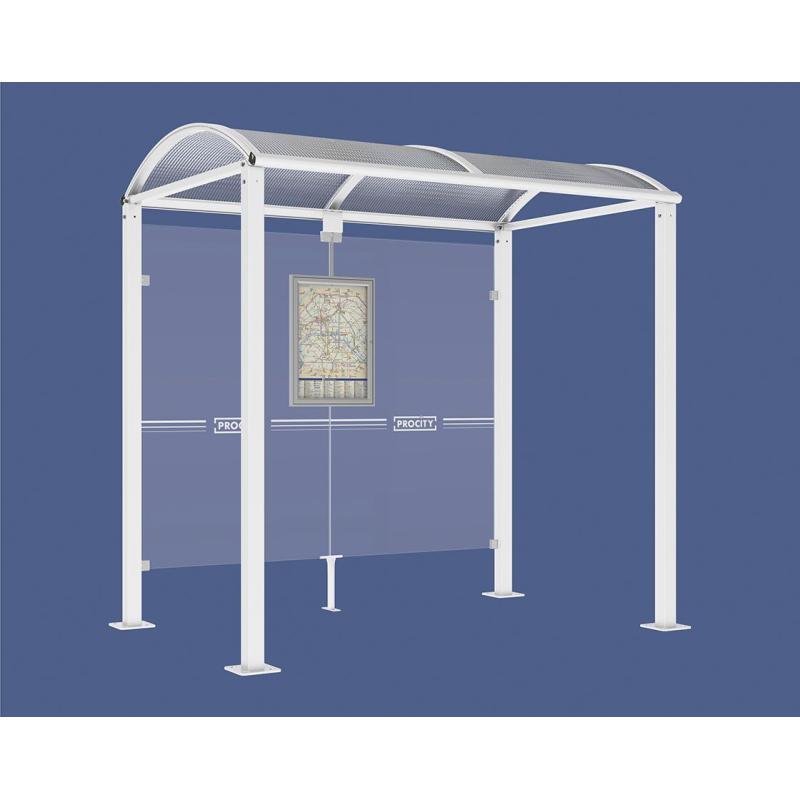

2500mm

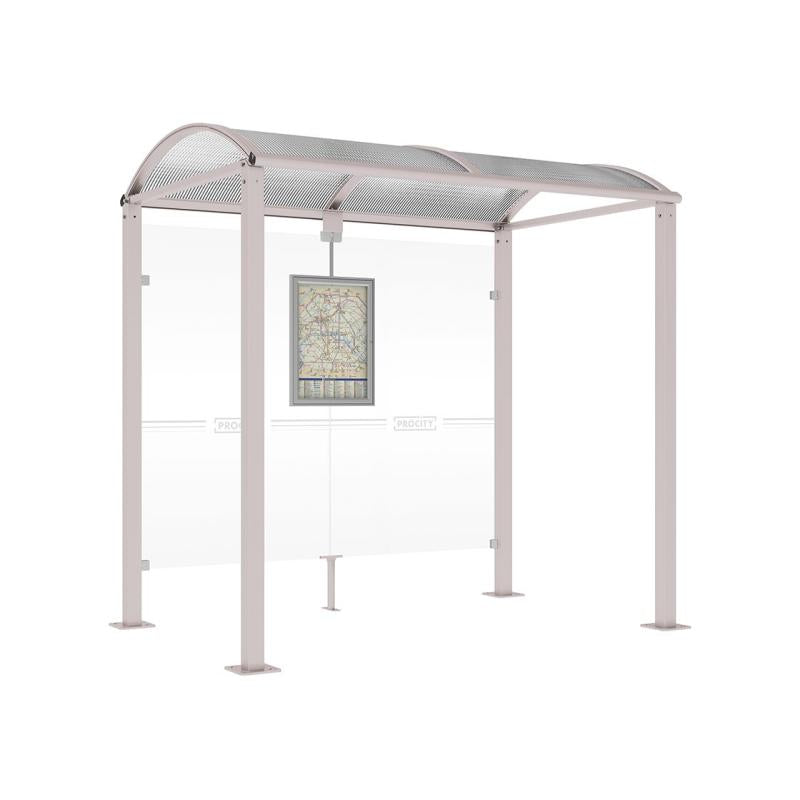

No Side Cladding
529208
248kg

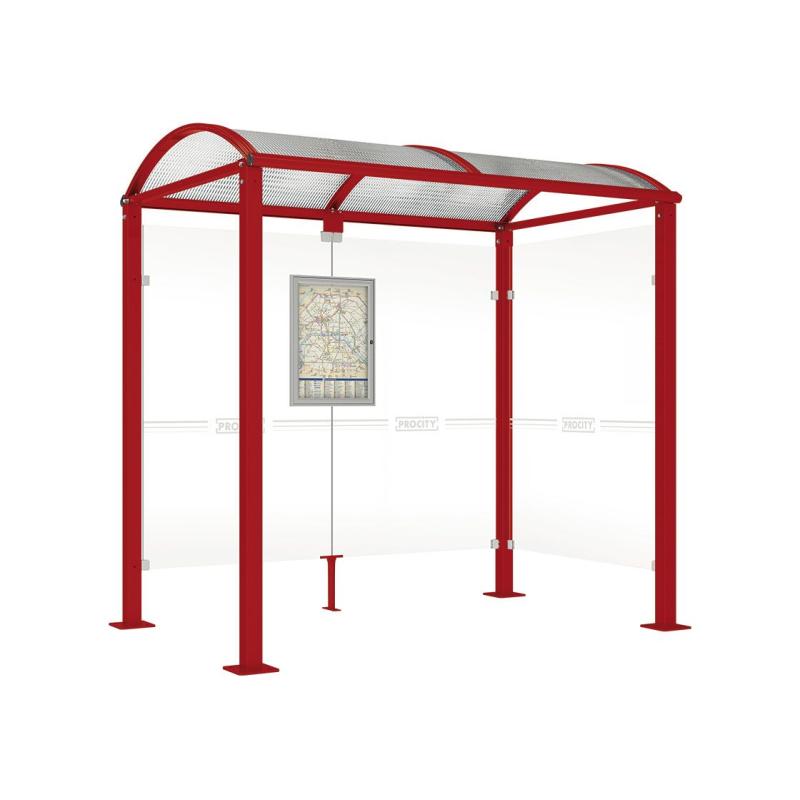

2500mm

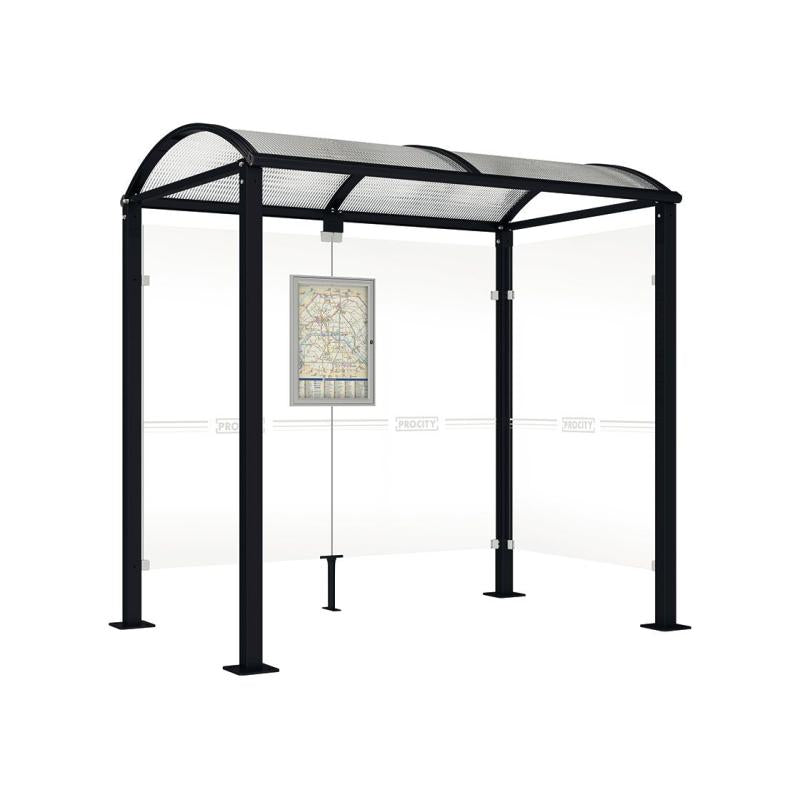

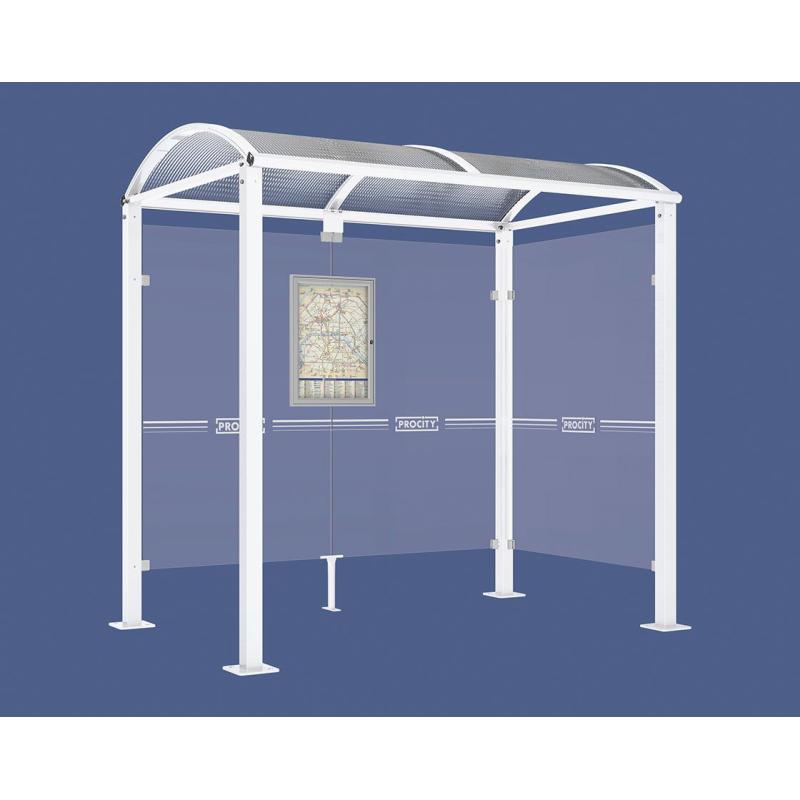

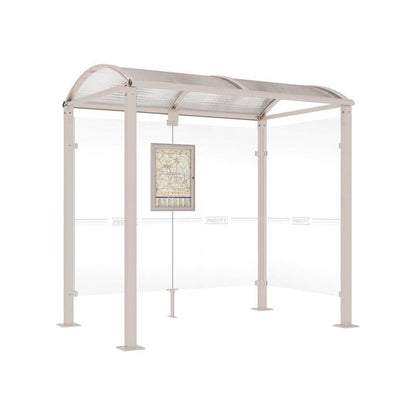

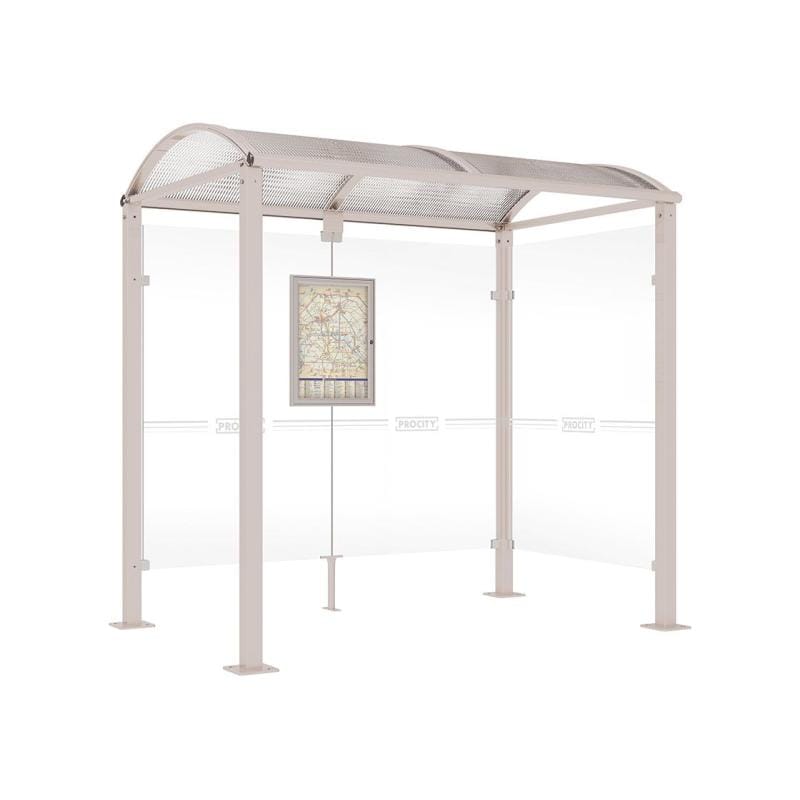

One Side Cladding
529308
290kg

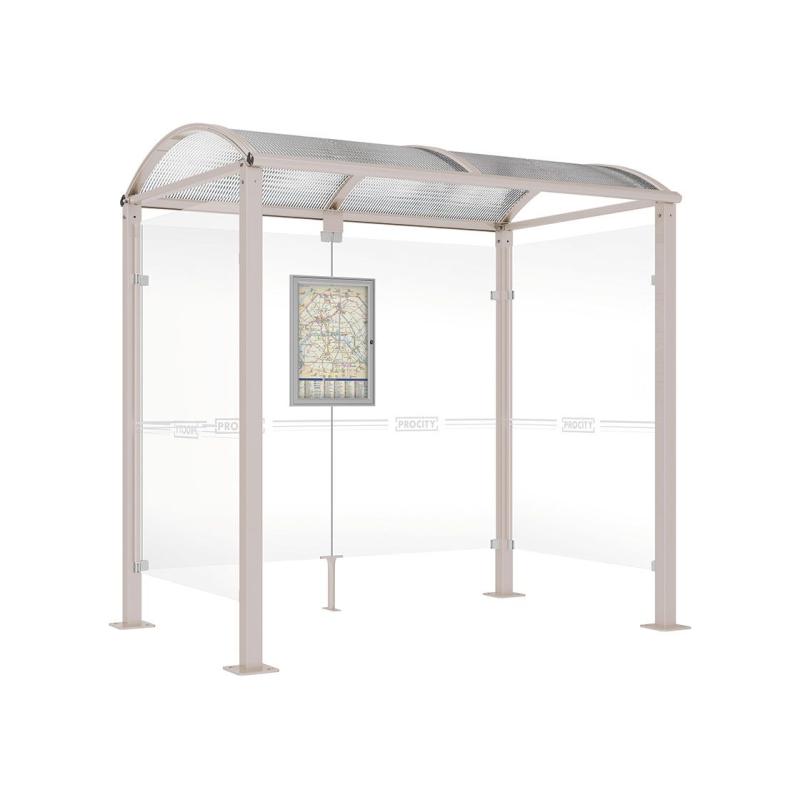

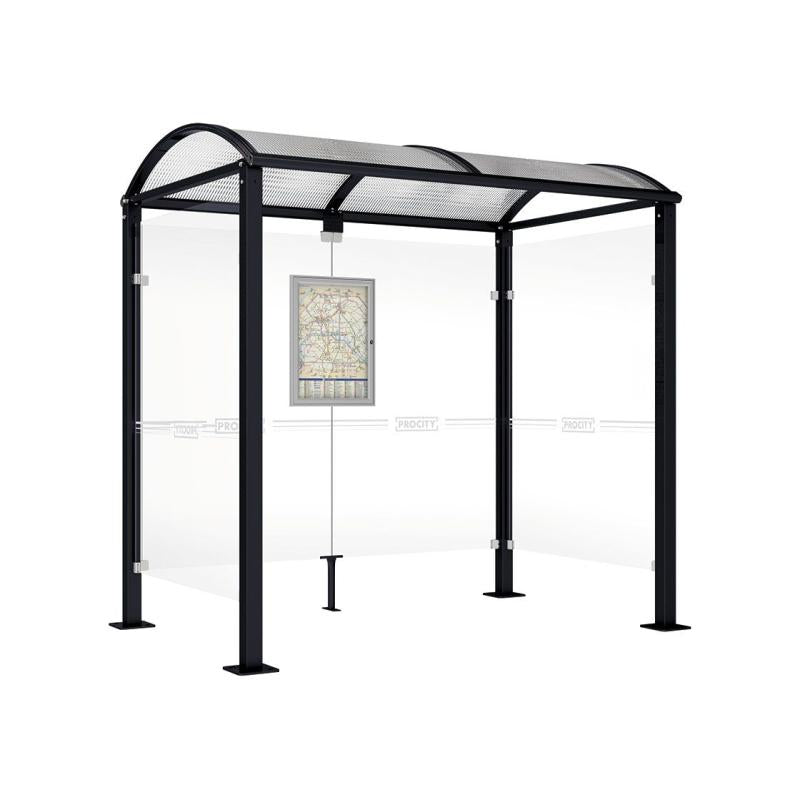

2500mm

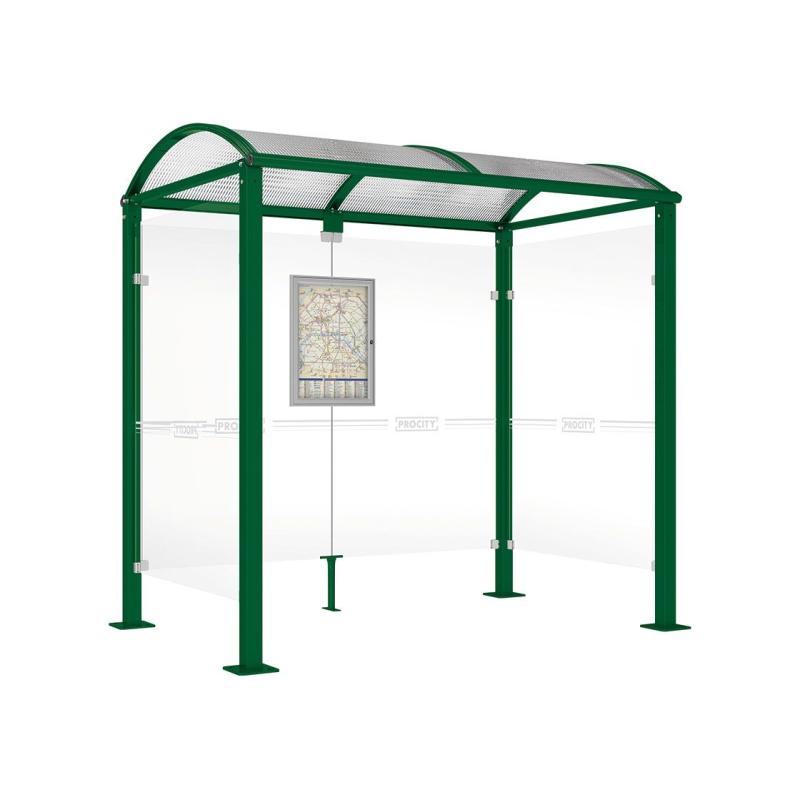

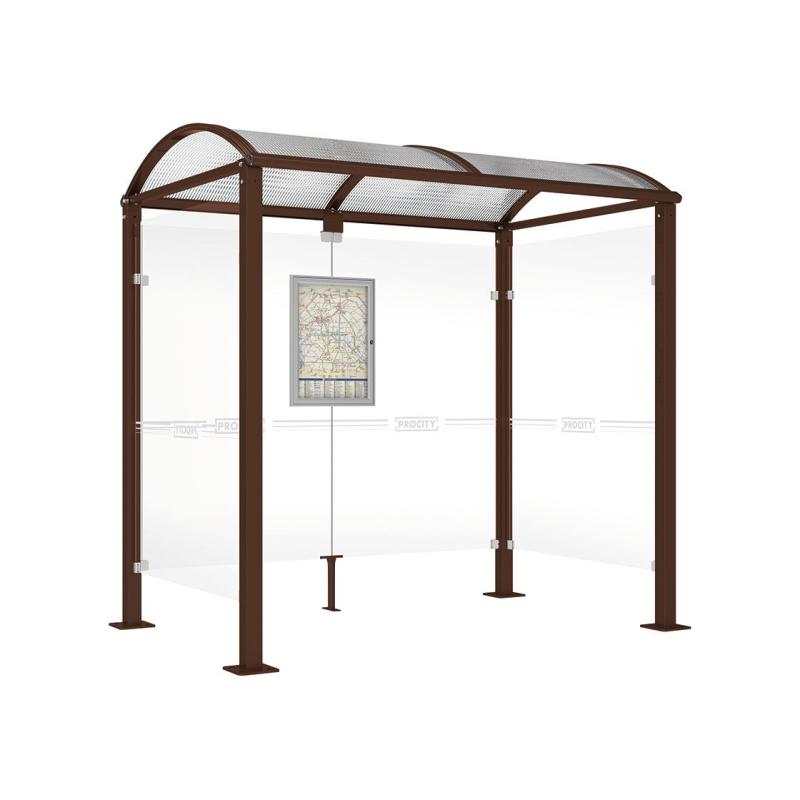

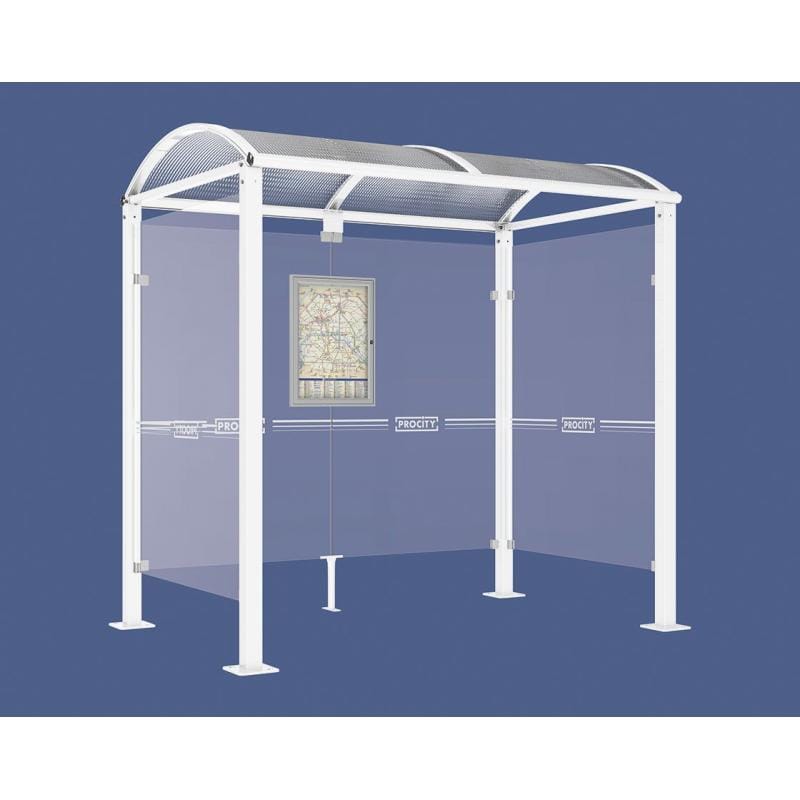

Both Side Cladding
529318
362kg

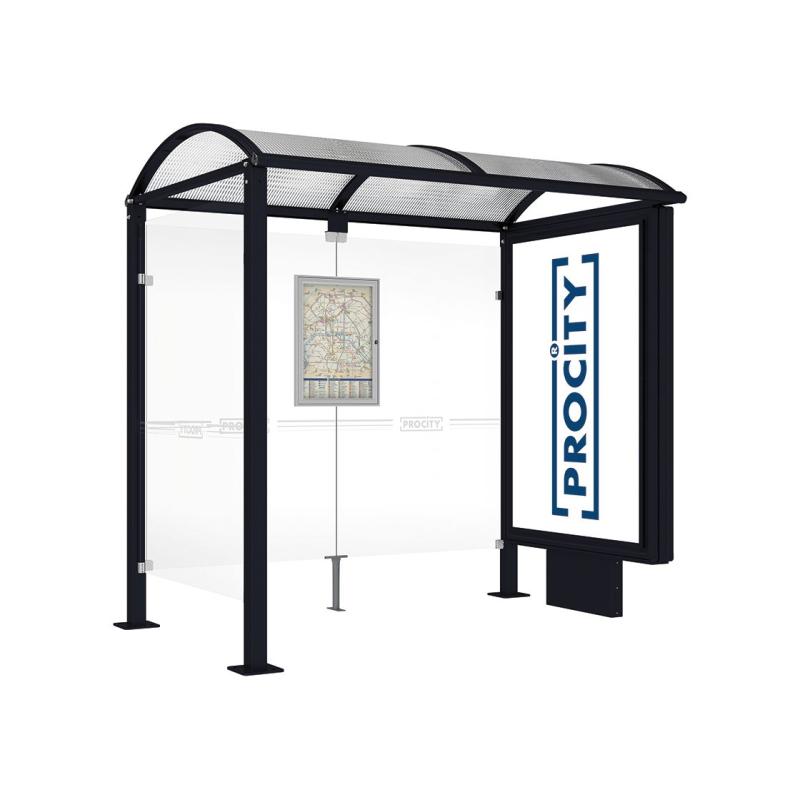

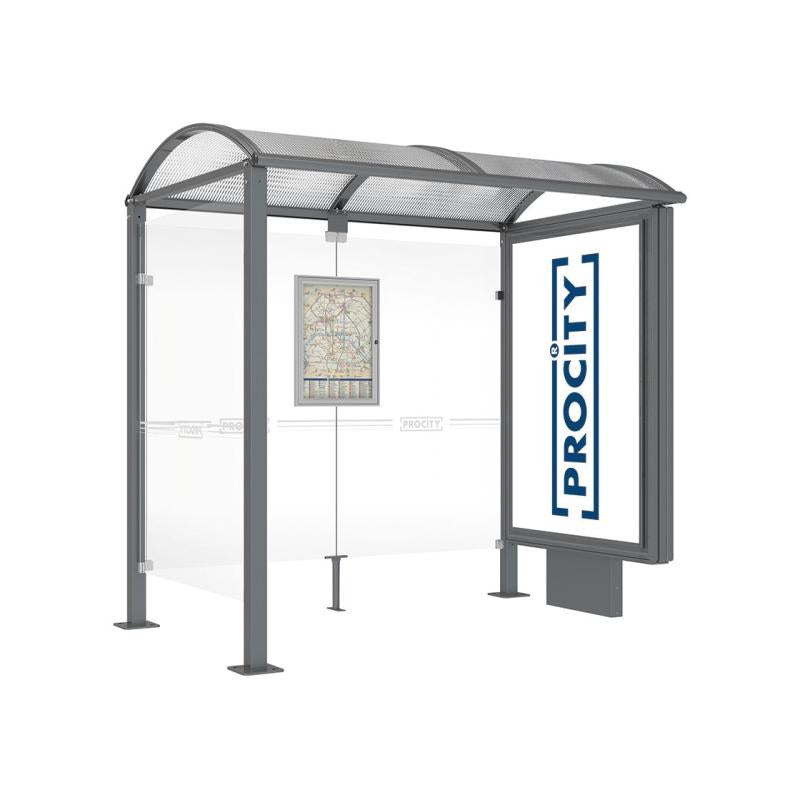

2500mm

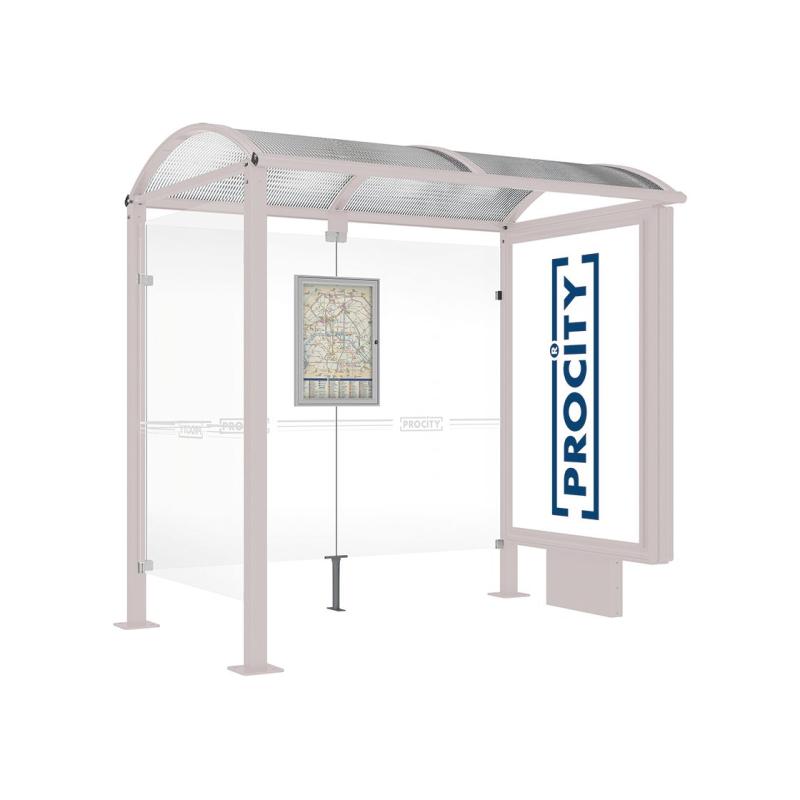

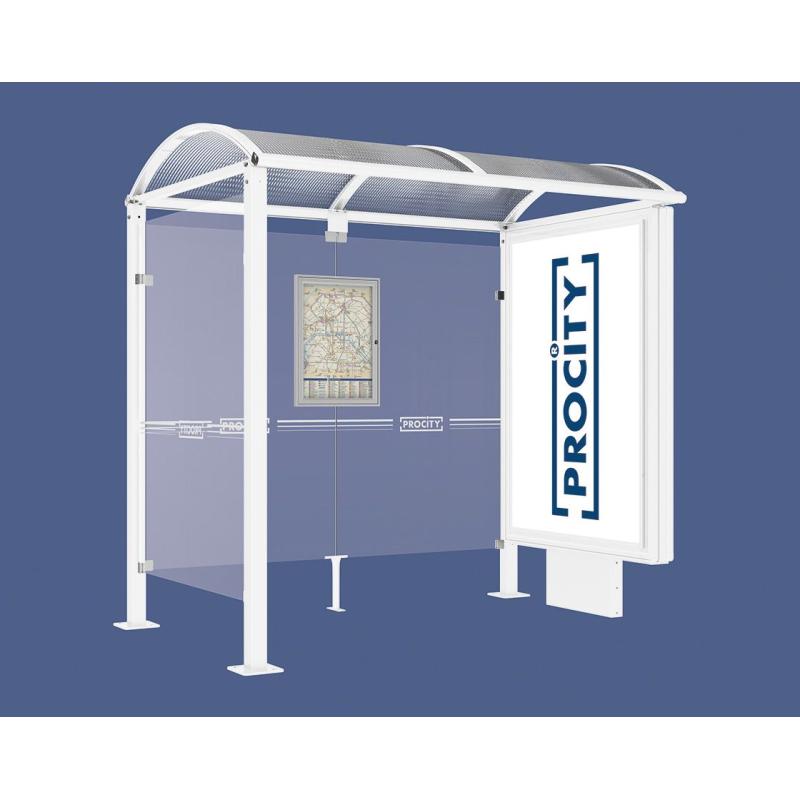

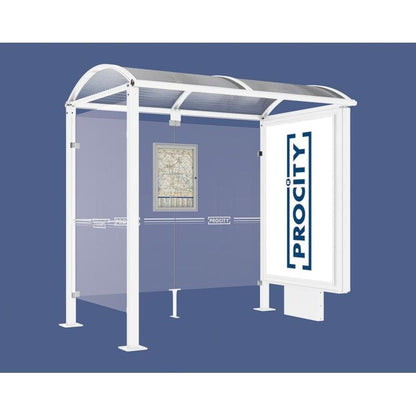

Lightbox and Cladding
529358
491kg

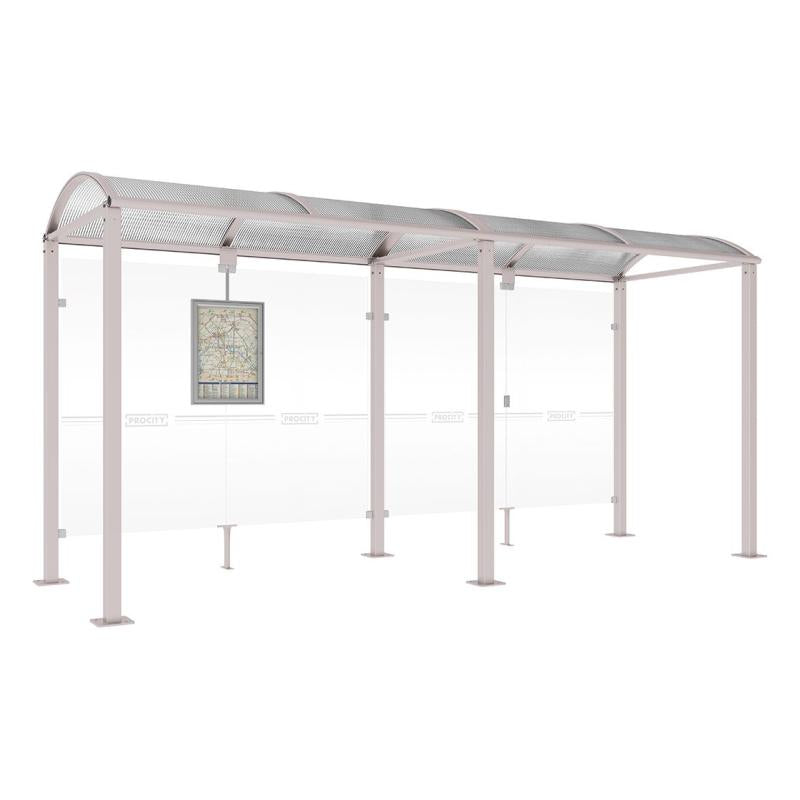

5000mm

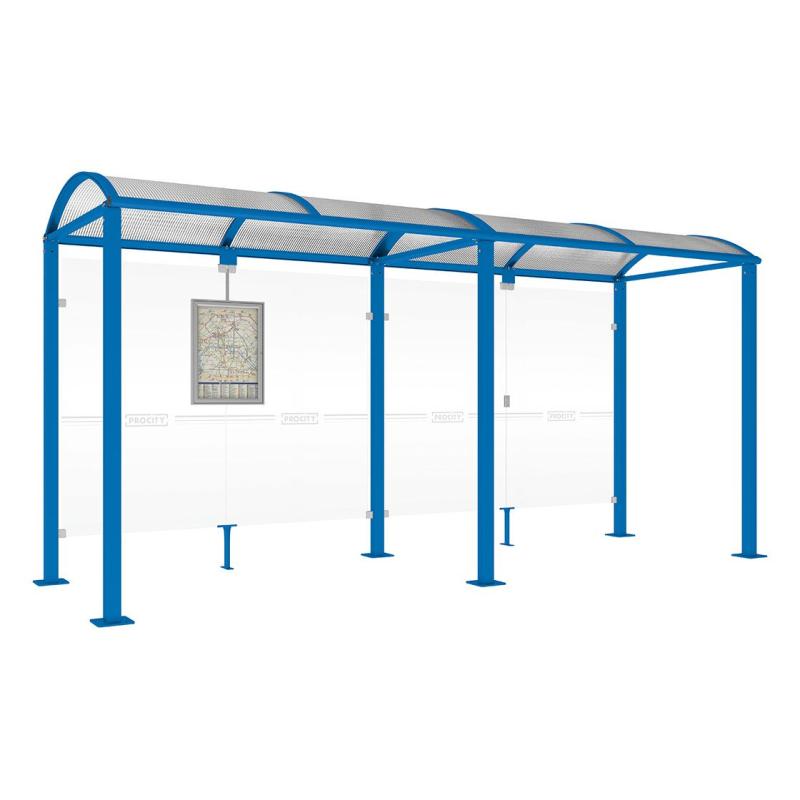

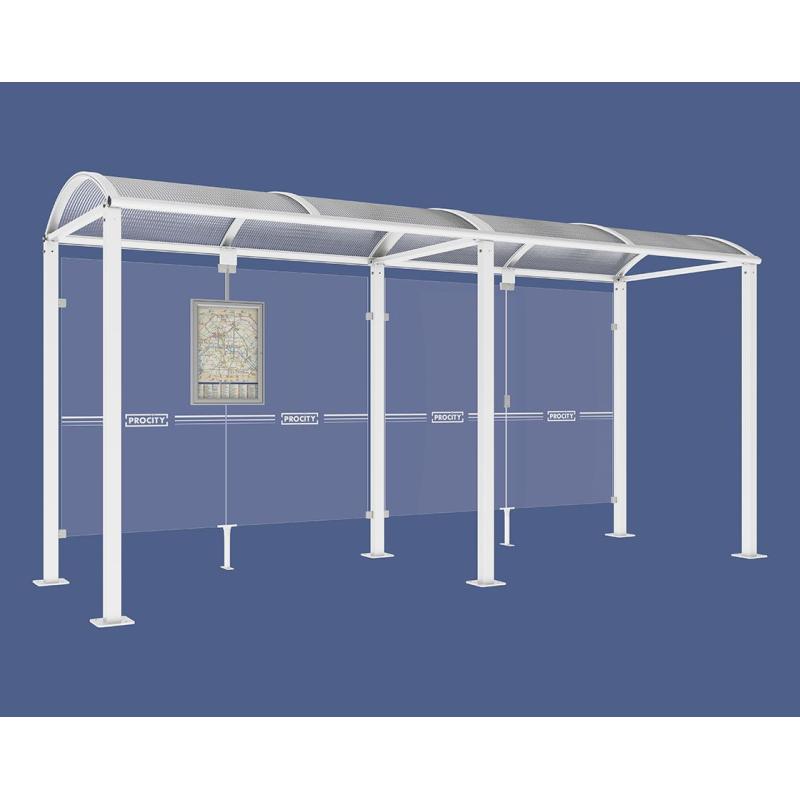

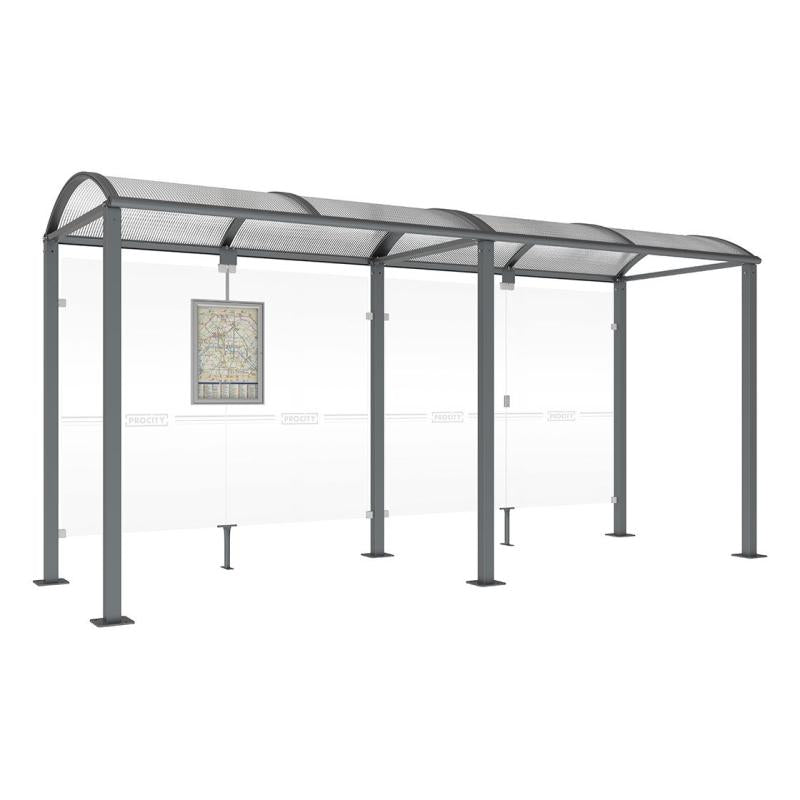

No Side Cladding
529209
355kg

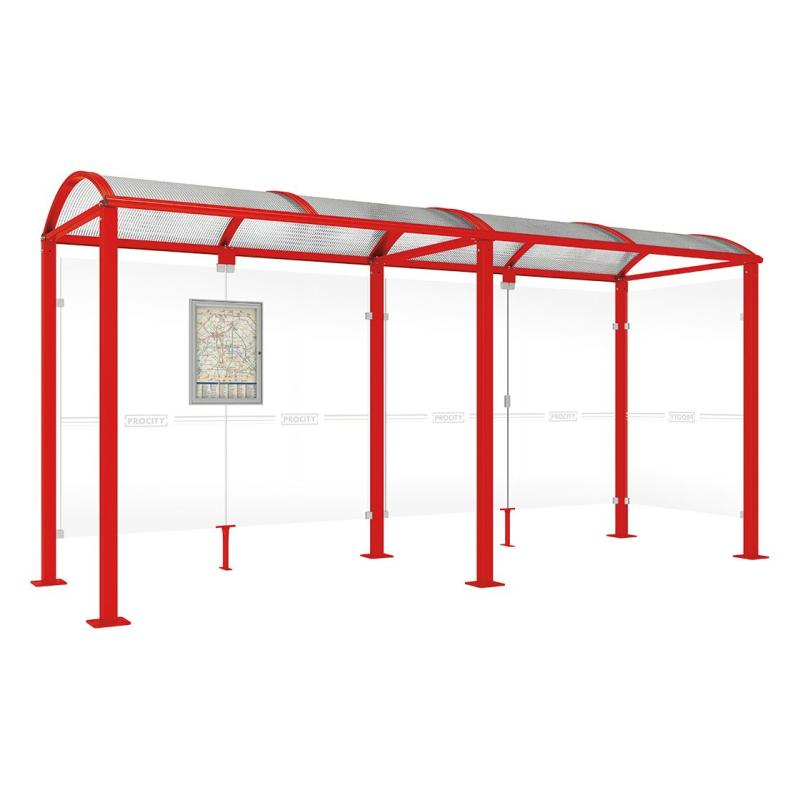

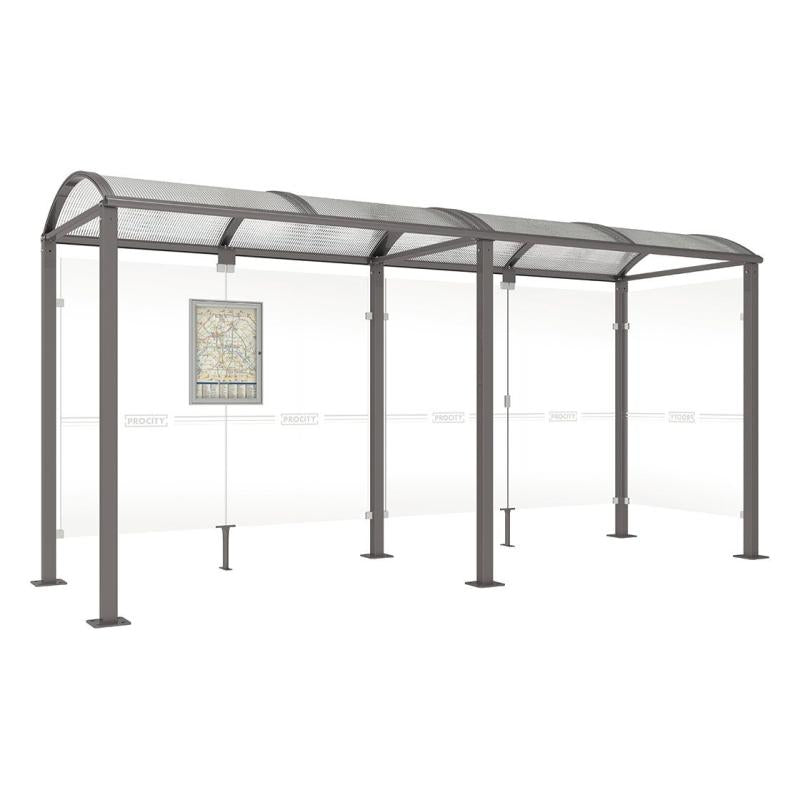

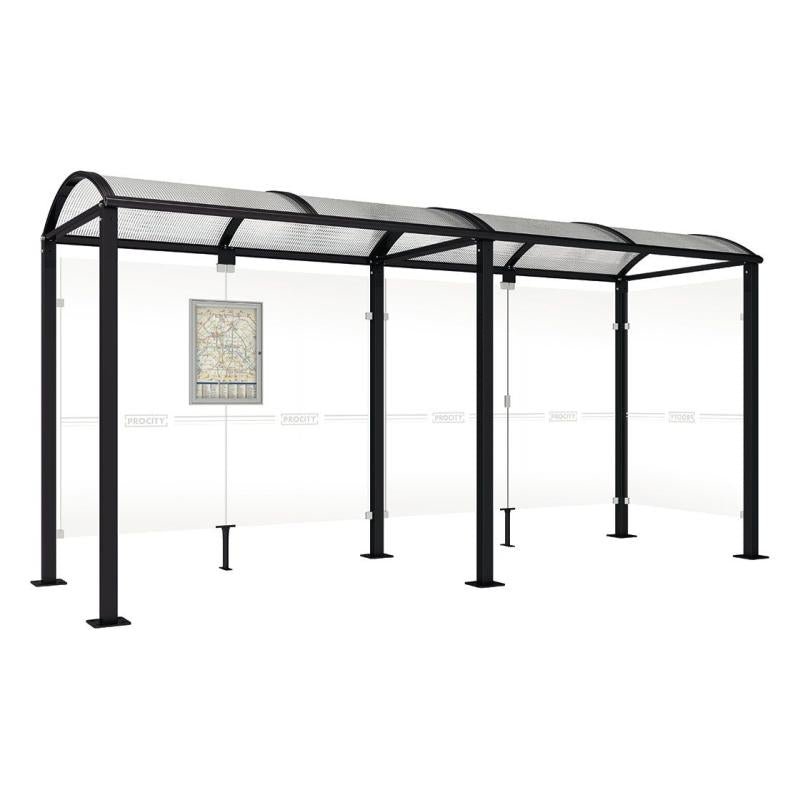

5000mm

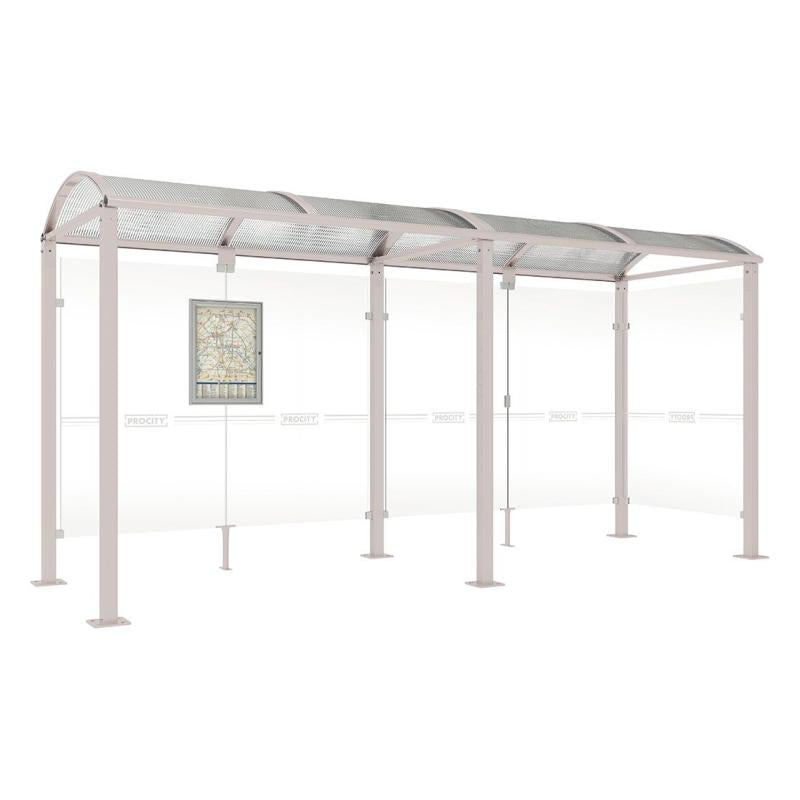

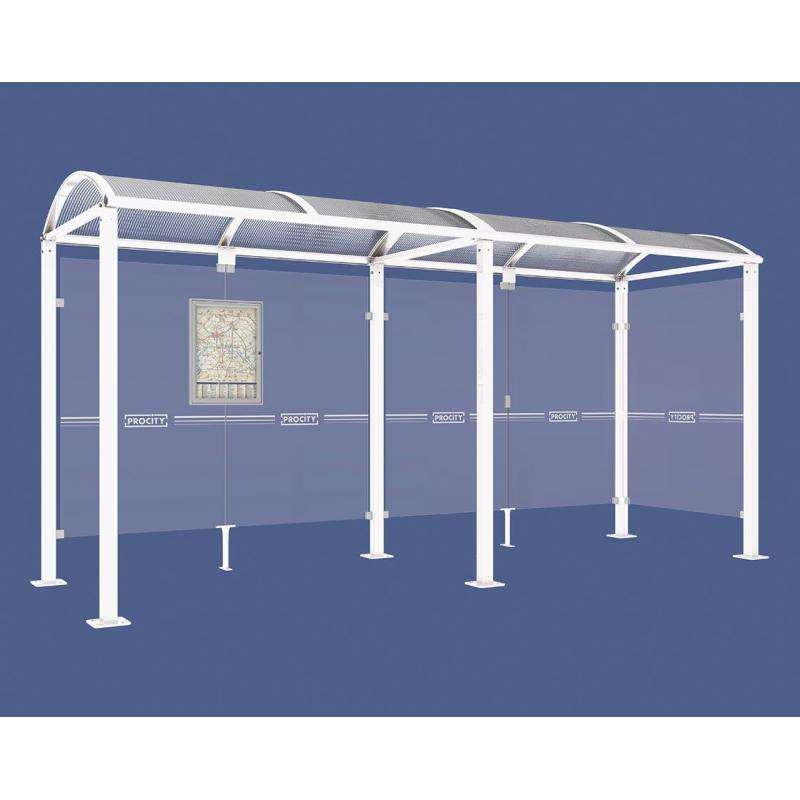

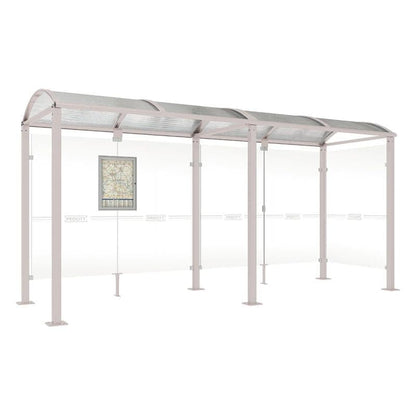

One Side Cladding
529309
479kg

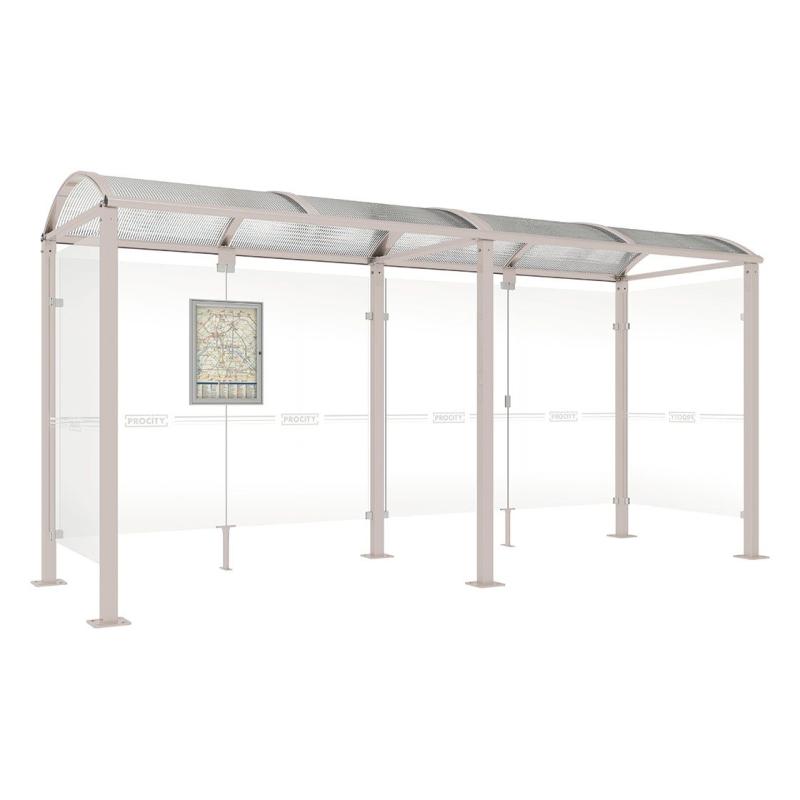

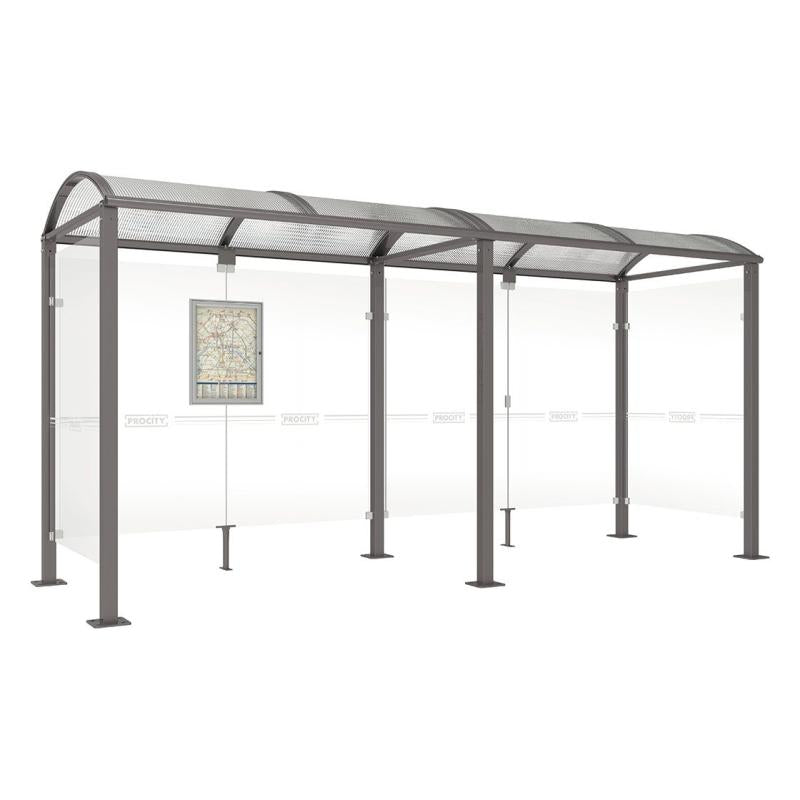

5000mm

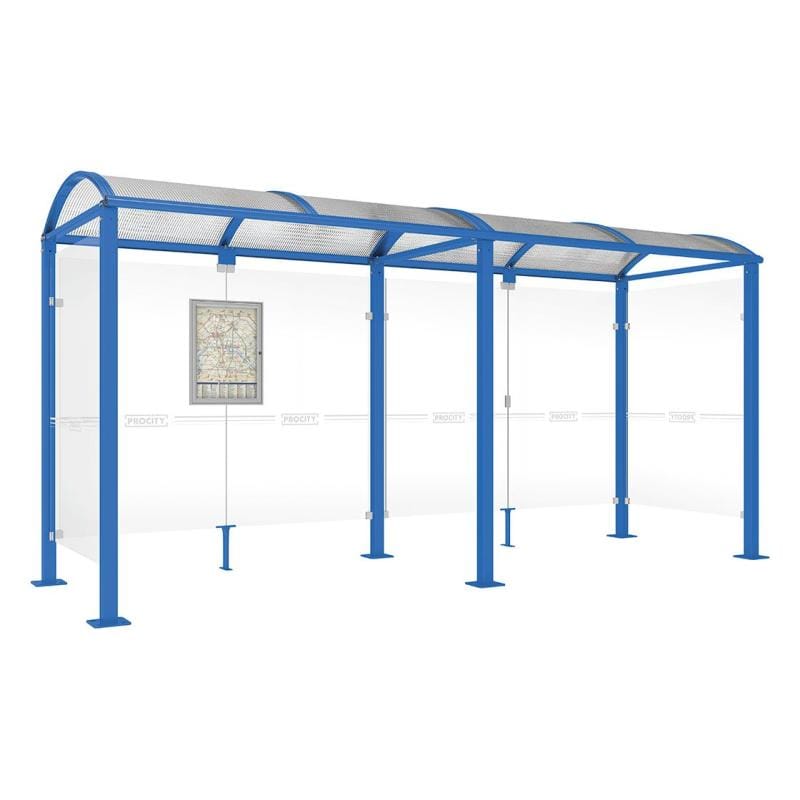

Both Side Cladding
529319
531kg

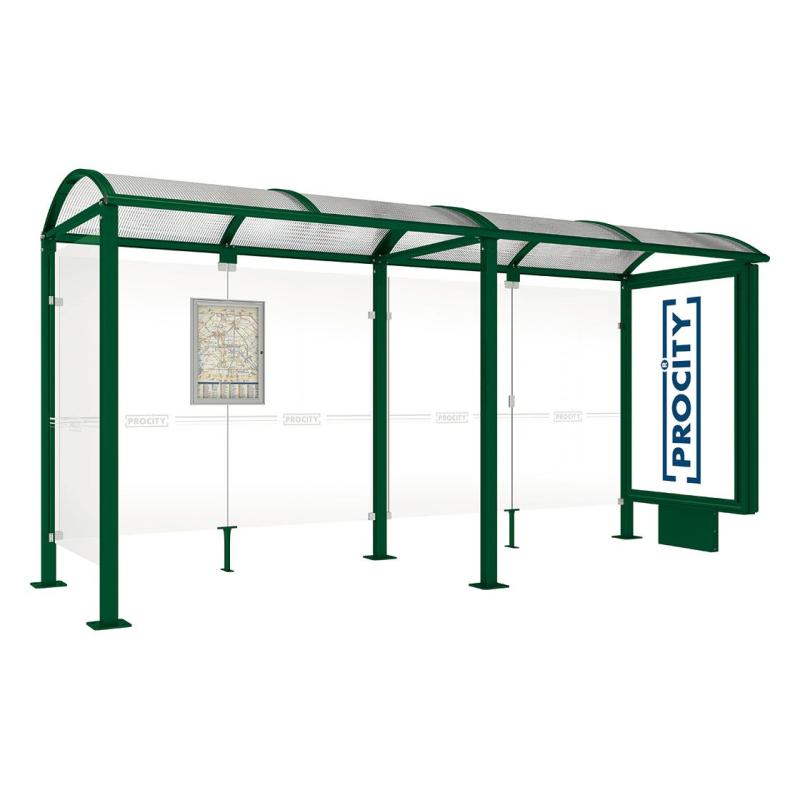

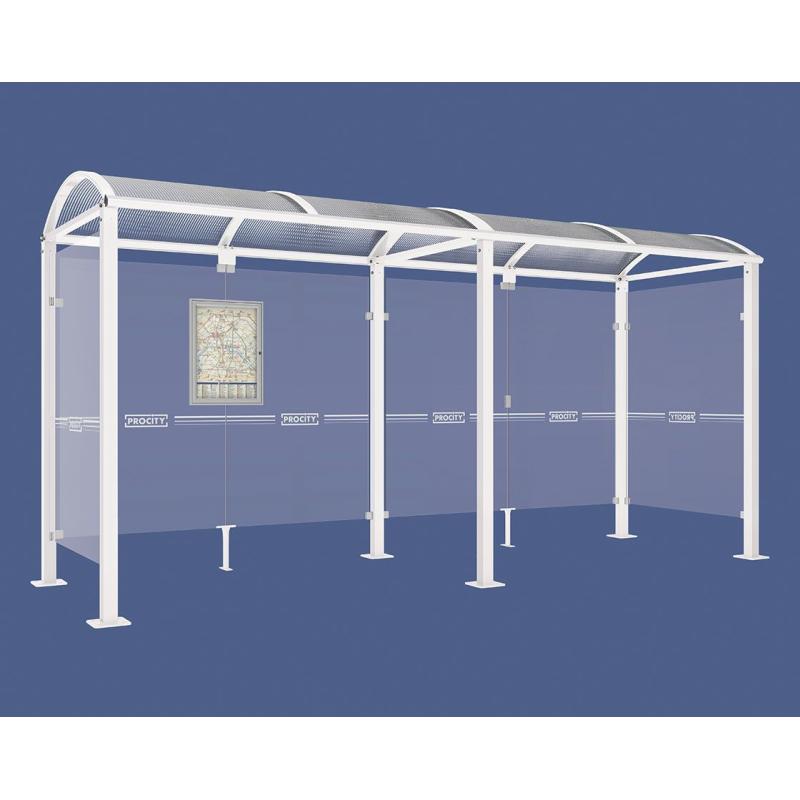

5000mm

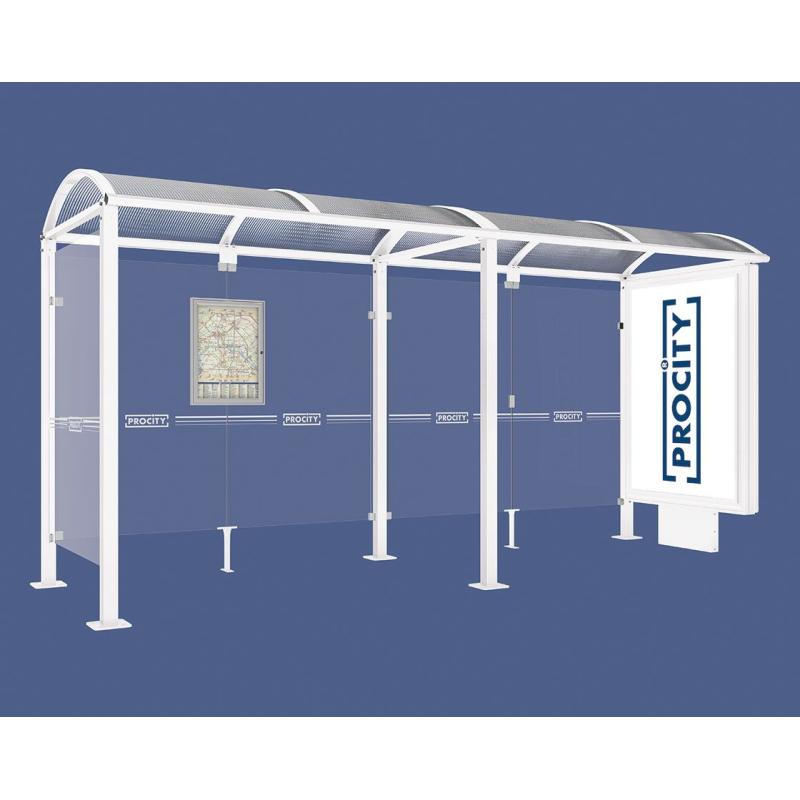

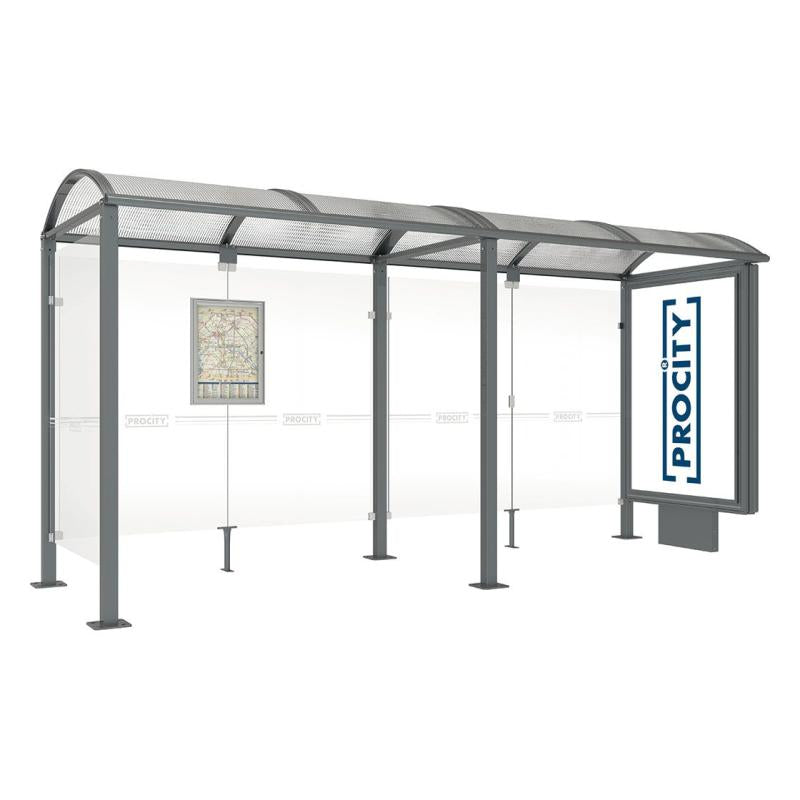

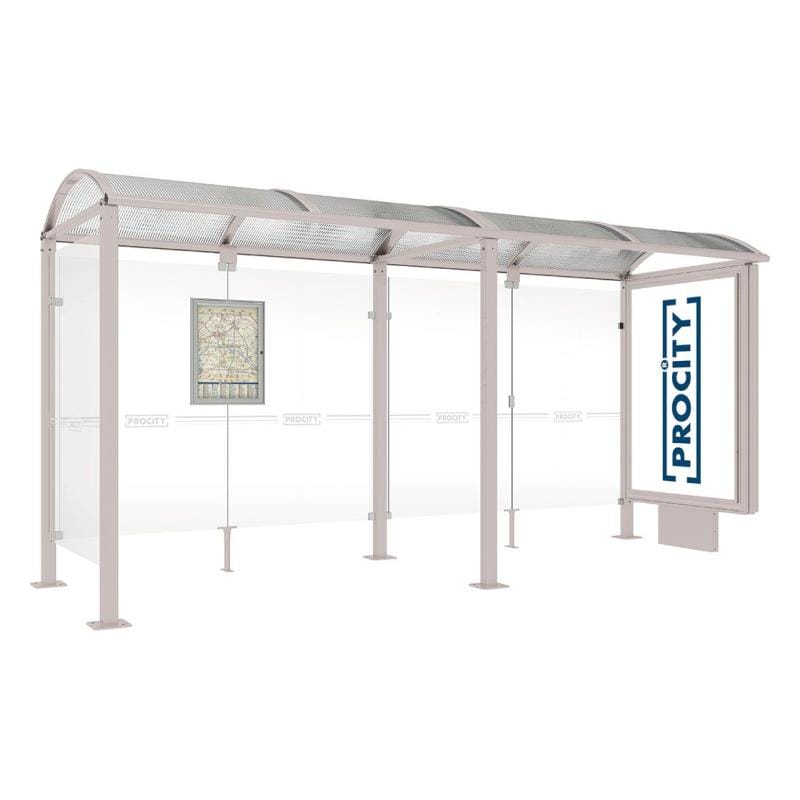

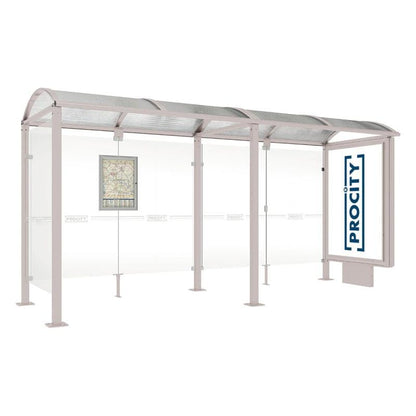

Lightbox and Cladding
529359
650kg
Product Description

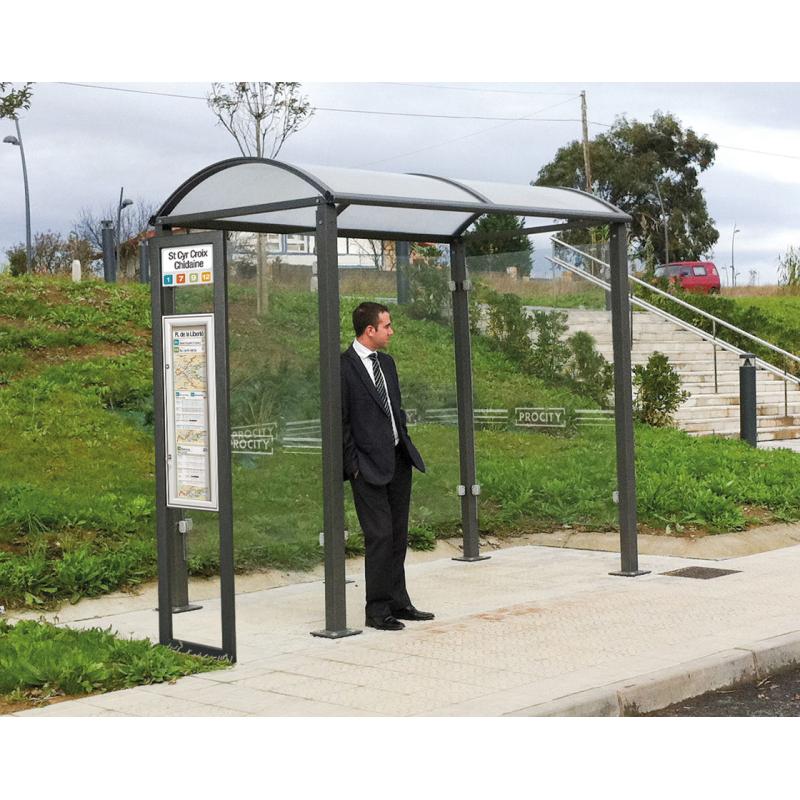

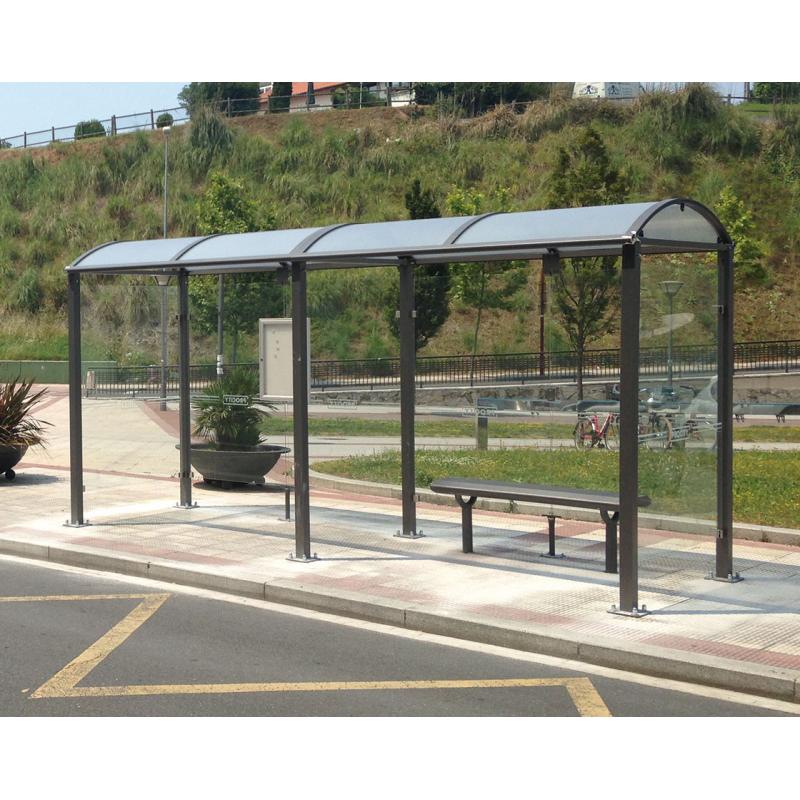

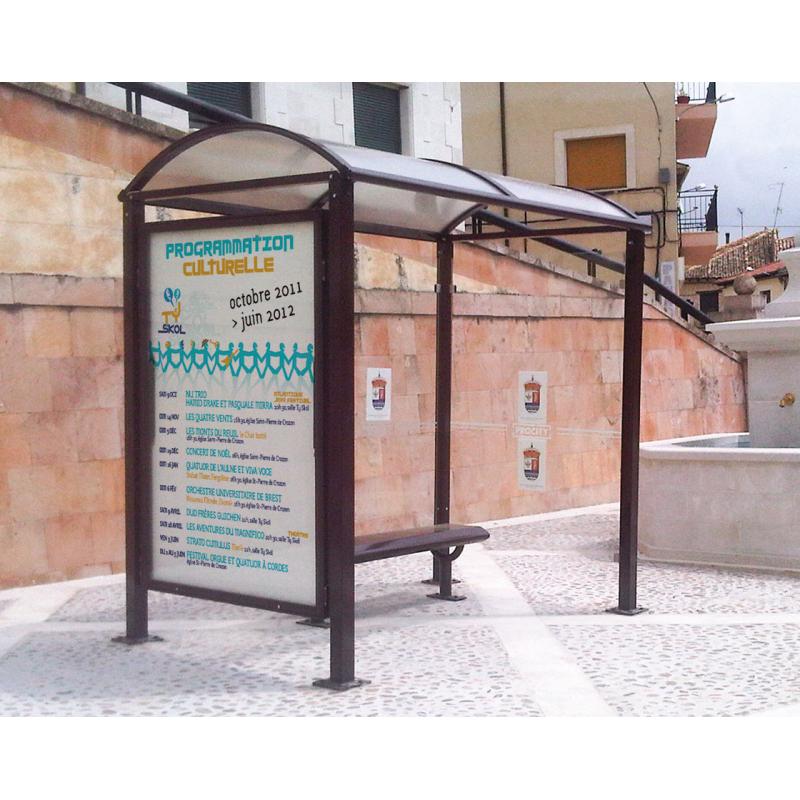

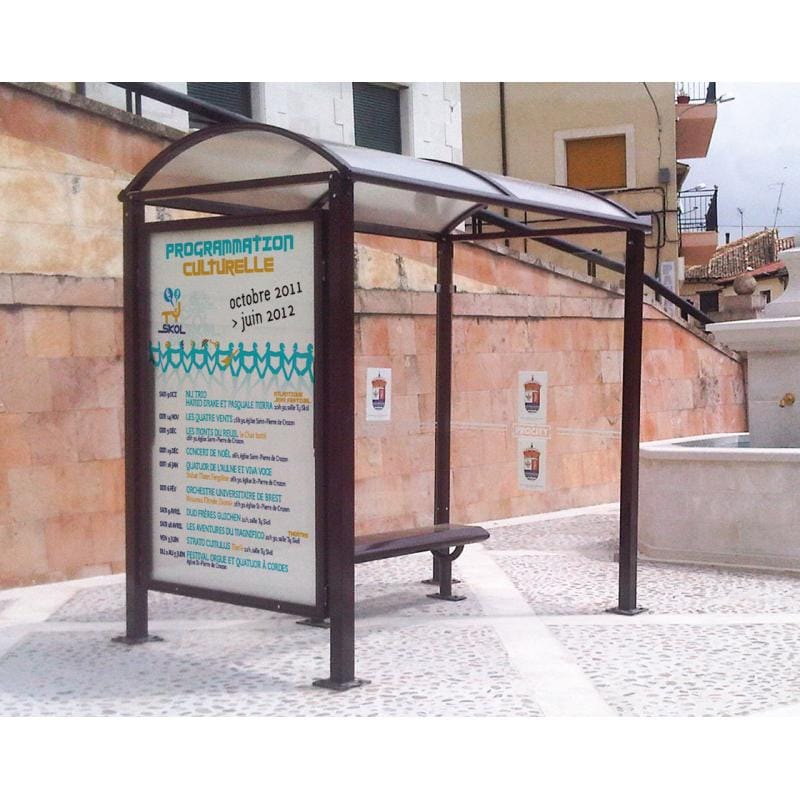

The Voute Bus Shelter offers a sophisticated and durable solution for public transport stations, combining modern aesthetics with robust materials. Designed to provide shelter and comfort for commuters, it features high-quality construction and an elegant, functional design suitable for a range of urban environments.
Key Features
Dimensions: Available in two sizes (2500mm and 5000mm lengths), with a depth of 1600mm and a height of 2500mm (under-roof height), providing ample space for passengers while maintaining a compact and practical footprint.
Steel Posts: The 80mm x 80mm square steel posts are designed for optimal strength and stability, supporting the shelter in all weather conditions. The galvanised and painted steel framework comes in a choice of 10 colours, allowing you to select the perfect match for your location.
Polycarbonate Roof: The 6mm polycarbonate roof, treated with anti-UV coating, offers excellent protection against the sun’s harmful rays. The roof is supported by a 40mm x 60mm framework, ensuring durability and structural integrity while maintaining a sleek, contemporary appearance.
Safety Glass Cladding: The rear and optional side cladding are constructed from 8mm safety glass, providing both security and visibility. The pinch-grip attachment system, made from Zamak alloy, ensures a secure and long-lasting installation of the cladding.
Timetable Display Case: A 750 x 550mm timetable display case with an anodised aluminium frame is included, offering an effective and secure place to display important schedules and notices for passengers.
Optional Advertising Lightbox: The optional advertising lightbox (1710mm x 1160mm) provides an excellent space for promotional content, public announcements, or other information, making it a versatile addition to the bus shelter.
Optional LED Lighting: For enhanced visibility during evening hours, optional LED lighting is available. Please note, installation must be carried out by a qualified electrician to ensure safety and optimal performance.
Signwriting Not Included: Signwriting is not included with the shelter, but it can be arranged separately for custom branding or additional signage.
Installation: The Voute Bus Shelter is designed for easy installation using the base plates supplied. This method ensures secure, stable mounting directly into the ground.
Customisation Options
Advertising Lightbox: Add the optional 1710mm x 1160mm advertising lightbox to maximise exposure for businesses or public notices. This is a perfect way to make the most of your bus shelter and enhance the surrounding environment.
LED Lighting: The optional LED lighting ensures the shelter remains well-lit during dark hours, improving visibility and safety. It is available upon request but must be installed by a qualified electrician to meet all electrical safety standards.
Side Cladding: Optional side cladding is available to provide additional weather protection, privacy, and aesthetic appeal, making the shelter even more functional.
Why Choose the Voute Bus Shelter?
The Voute Bus Shelter is a reliable and stylish addition to any public transport network. Its durable construction, including a polycarbonate roof and safety glass cladding, ensures it can withstand the elements while keeping passengers safe and comfortable. With optional features like the advertising lightbox and LED lighting, it offers flexibility for advertising, visibility, and enhanced user experience.
