870mm total height if concreted, 690mm high if mounted on base plates
Choice of galvanised finish, or galvanised and painted in a choice of 10 colours

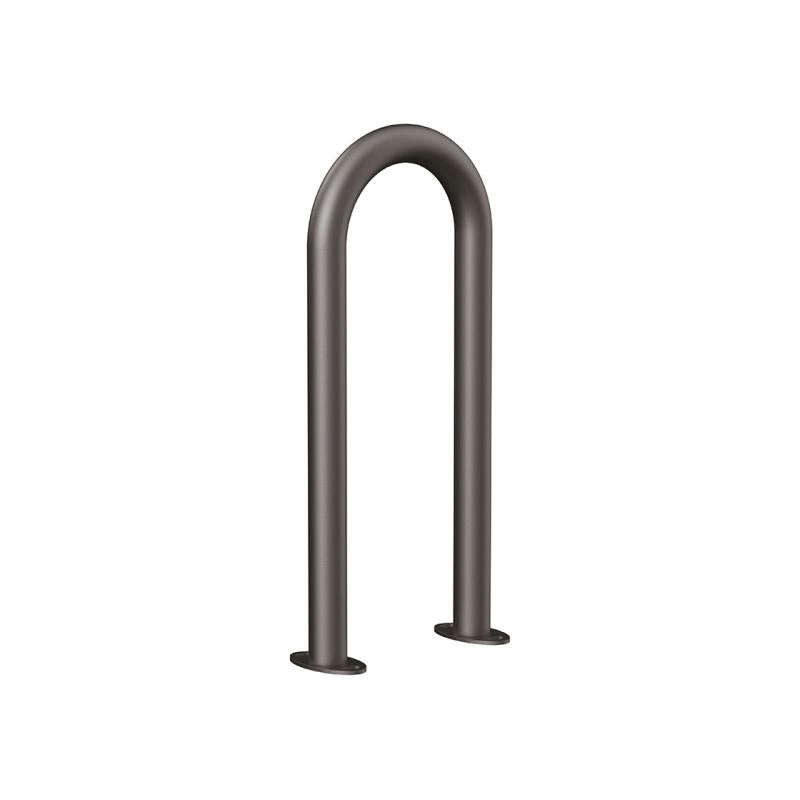

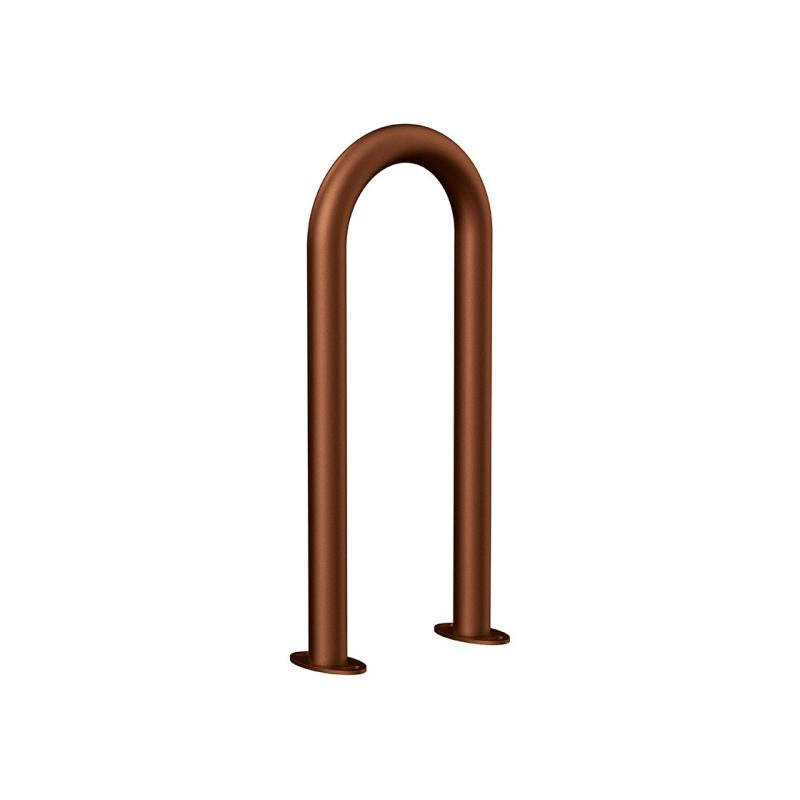

Installed by concreting directly into the ground, or on base plates

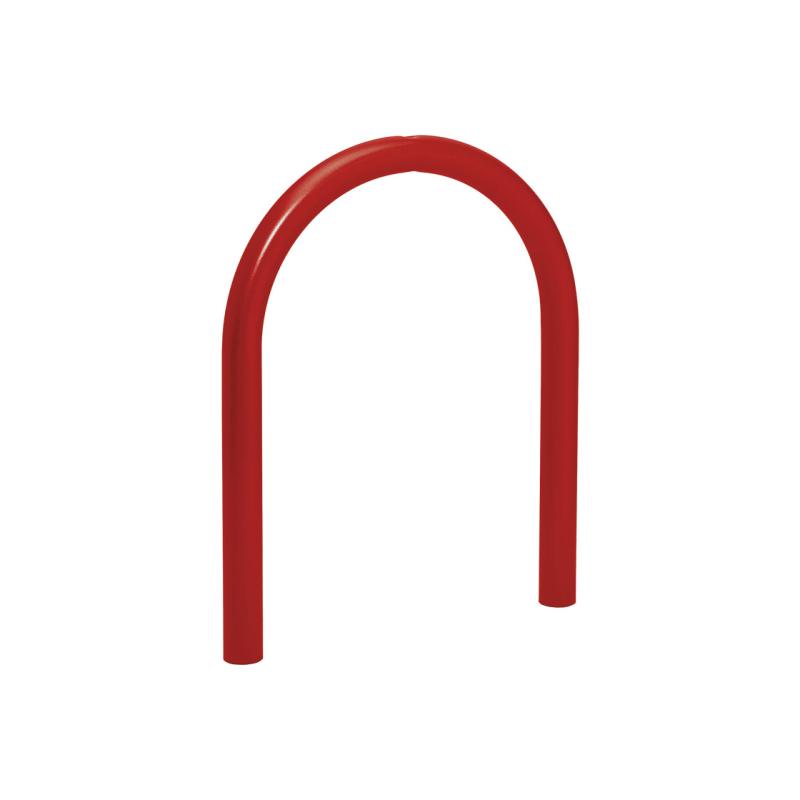

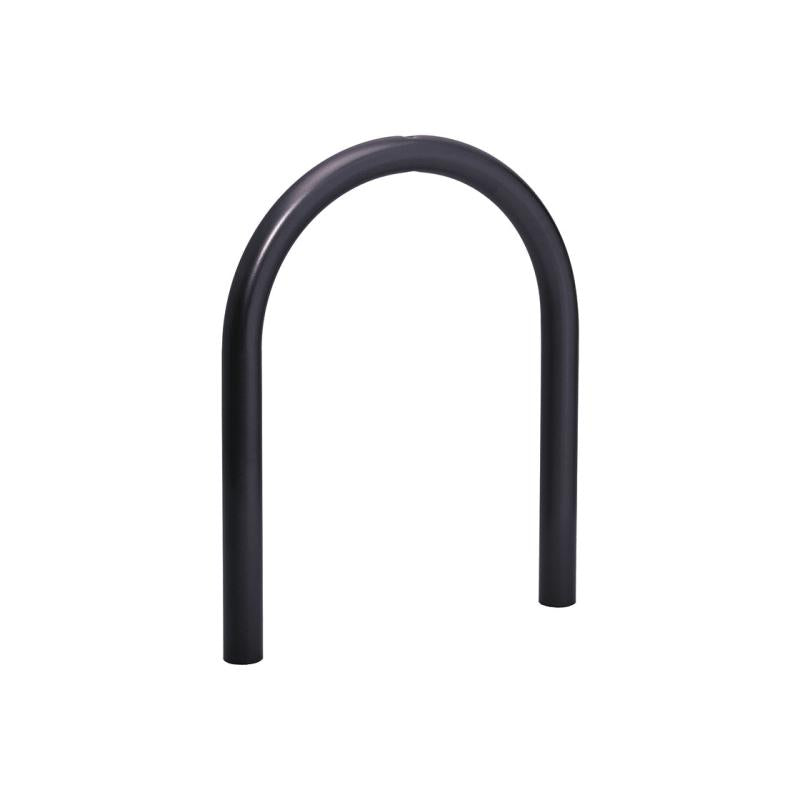

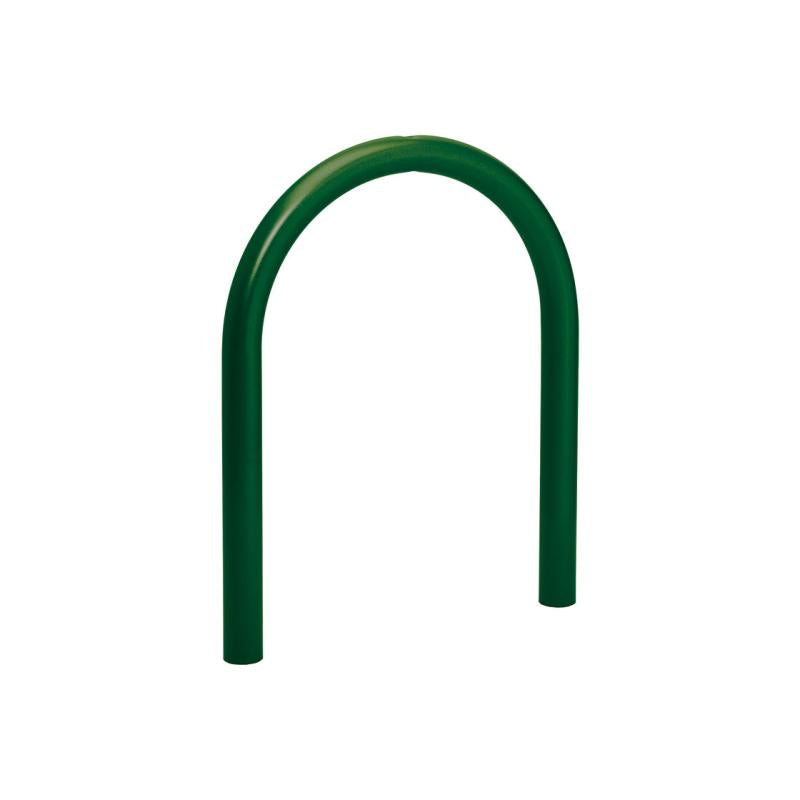

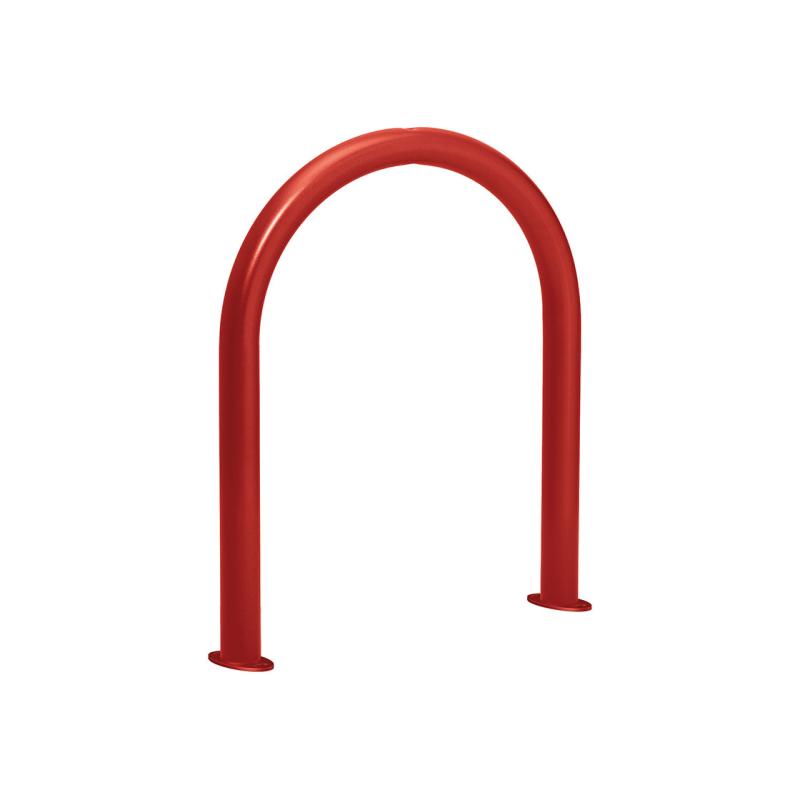

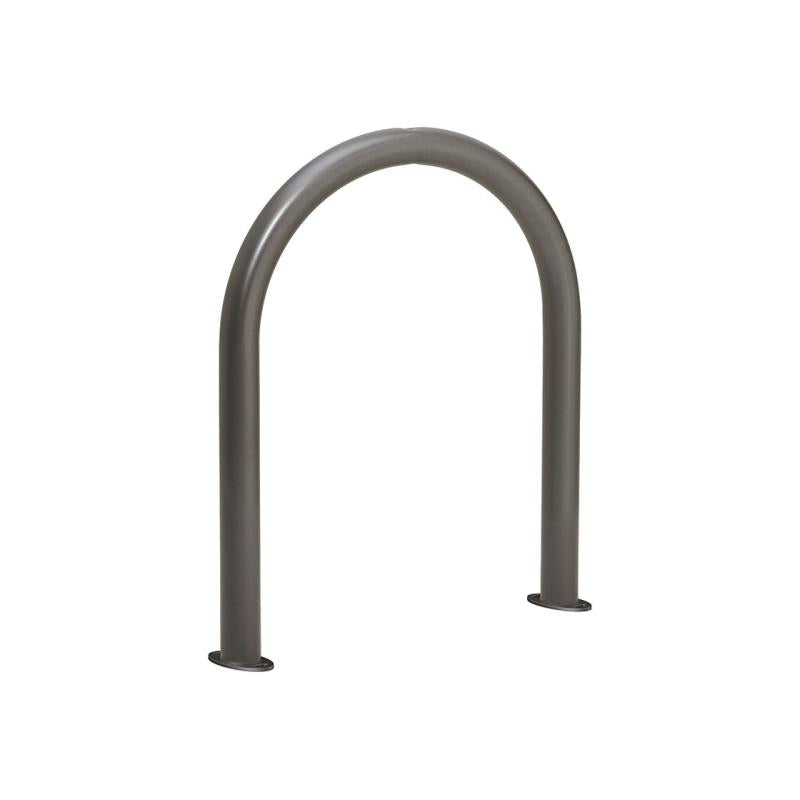

60mm Version
60mm diameter steel tube construction
635mm overall width
870mm total height if concreted, 690mm high if mounted on base plates
Choice of galvanised finish, or galvanised and painted in a choice of 10 colours
Installed by concreting directly into the ground, or on base plates
Lead time: 2-3 working days for galvanised only version - 6 weeks for painted version
Diameter
Install Method
Code (Galvanised)
Code (Painted)
Weight
50mm
Concrete
201066
201067
7kg
50mm
Base Plates
291066
291067
7kg
60mm
Concrete
201060
201061
8kg
60mm
Base Plates
291060
291061
8kg
Product Description

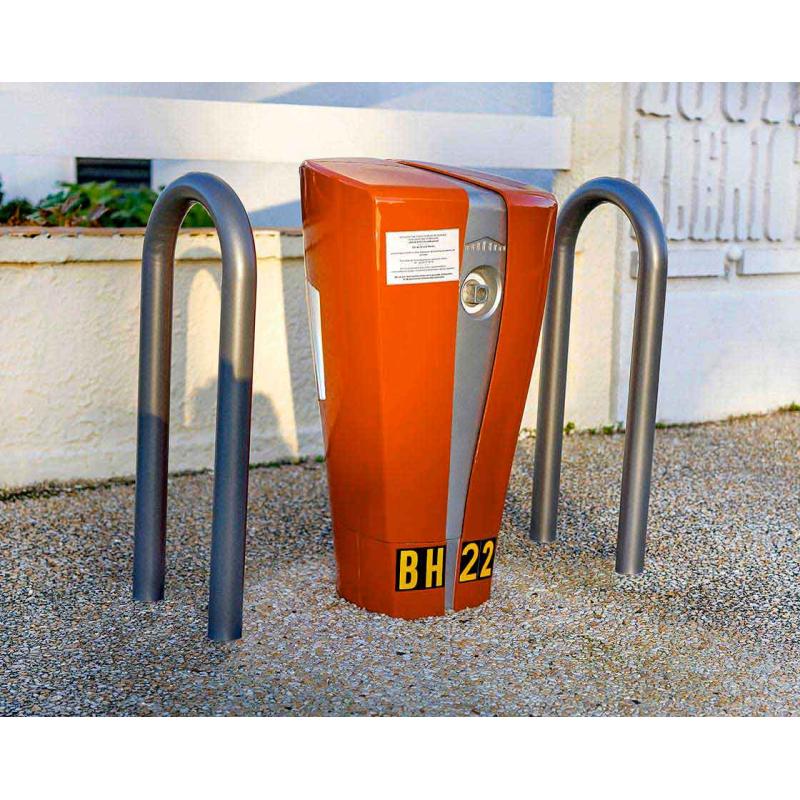

The U-Shaped Protection Barrier offers robust defence for posts, poles, and other vital equipment in public and commercial spaces. Designed for durability and customisation, it is suitable for various applications, including car parks, pedestrian zones, and industrial settings.

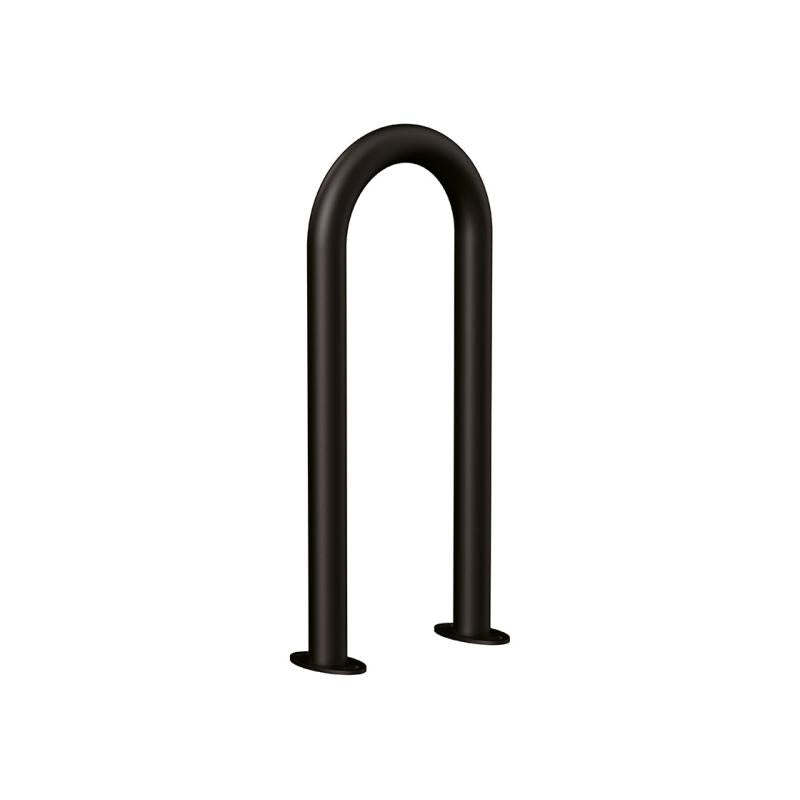

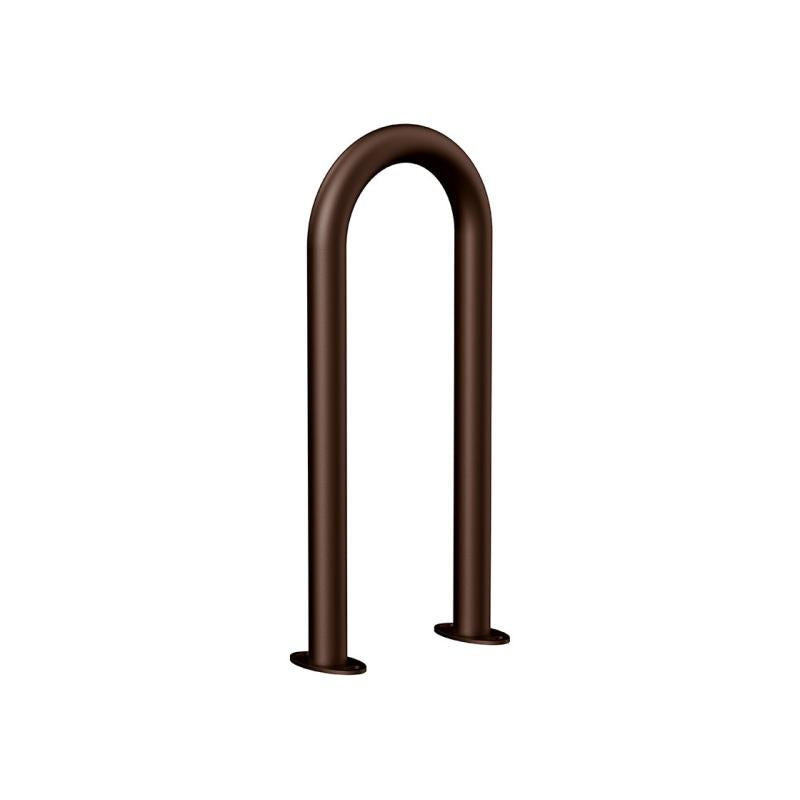

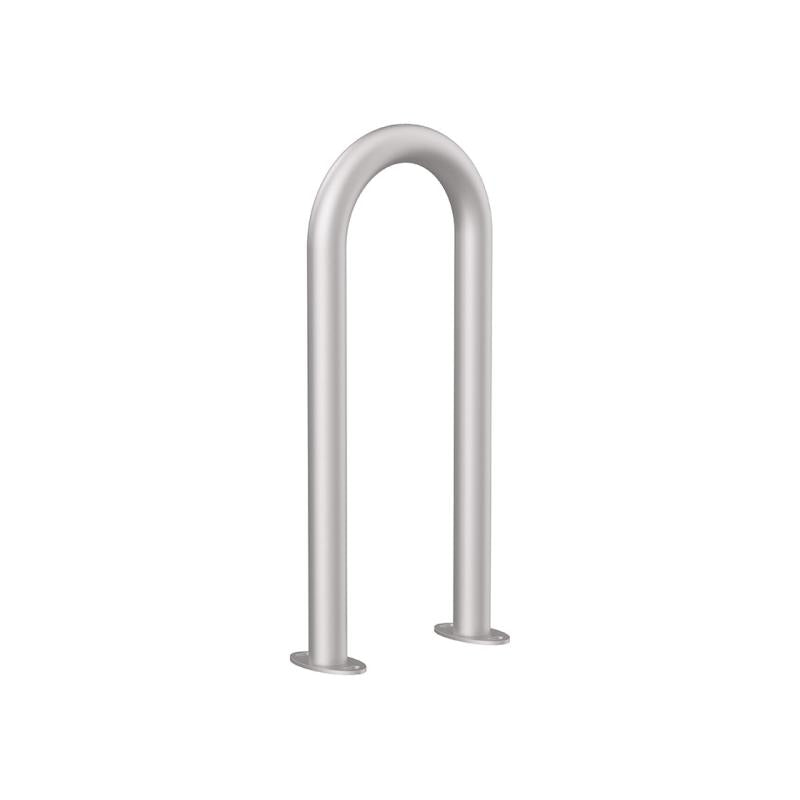

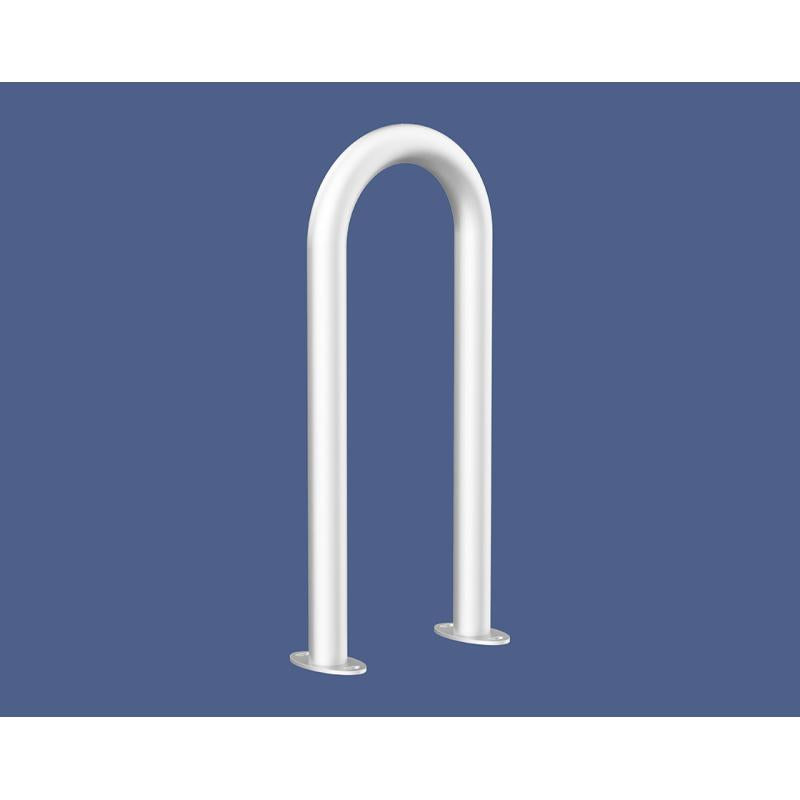

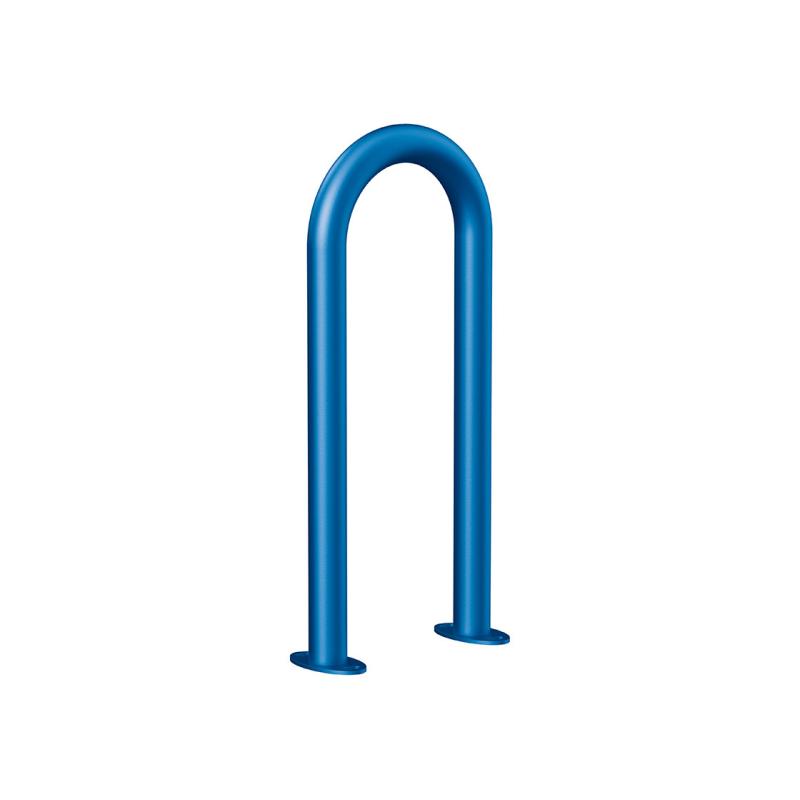

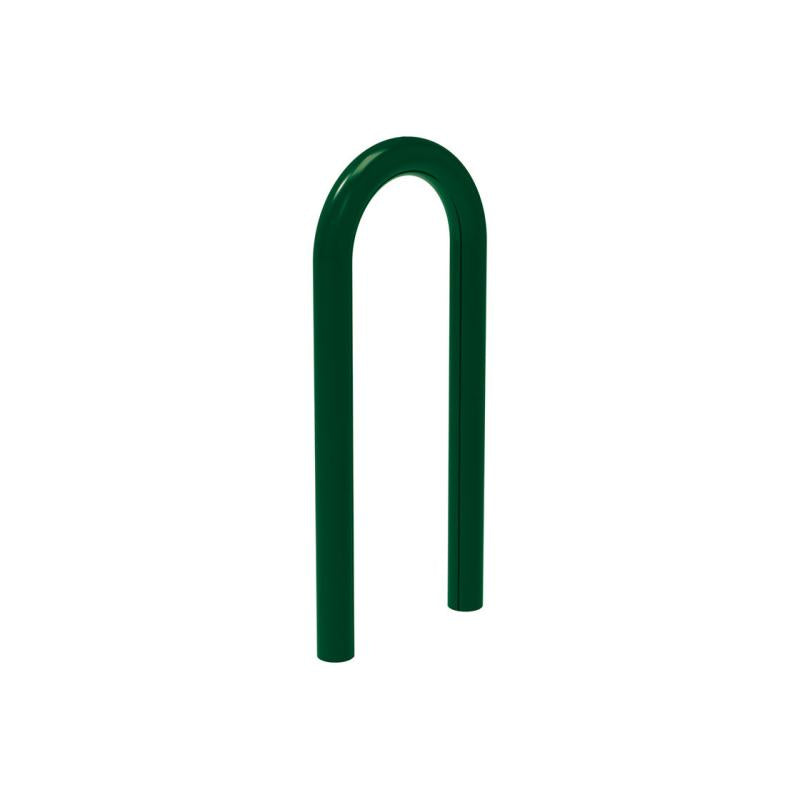

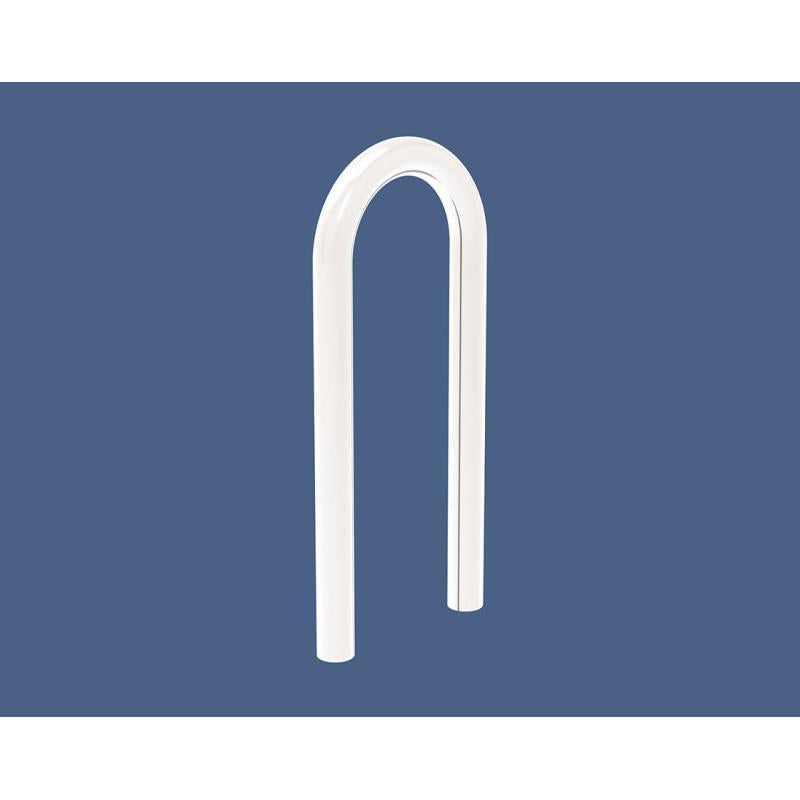

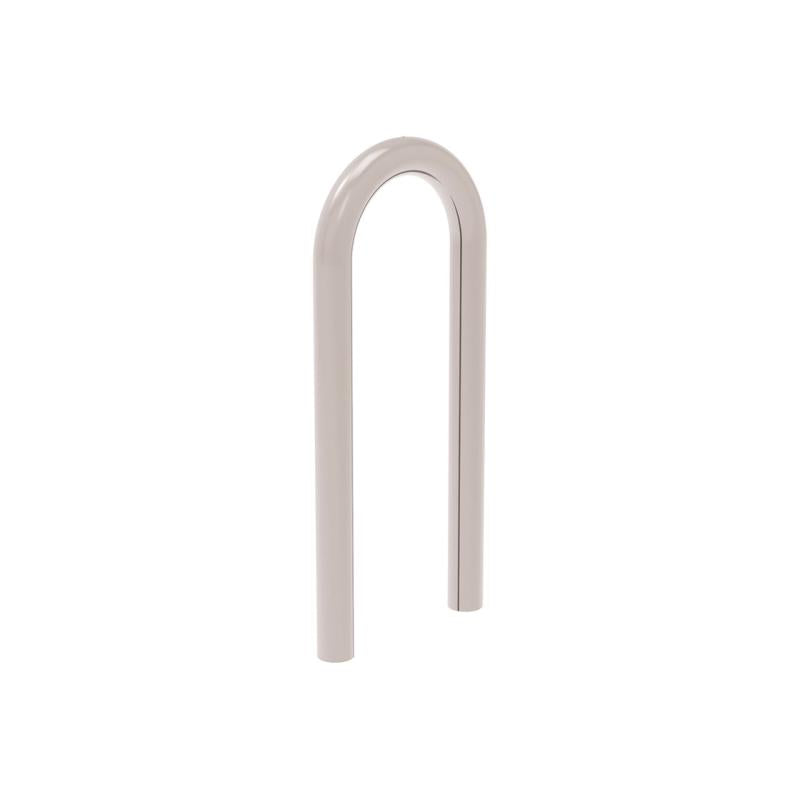

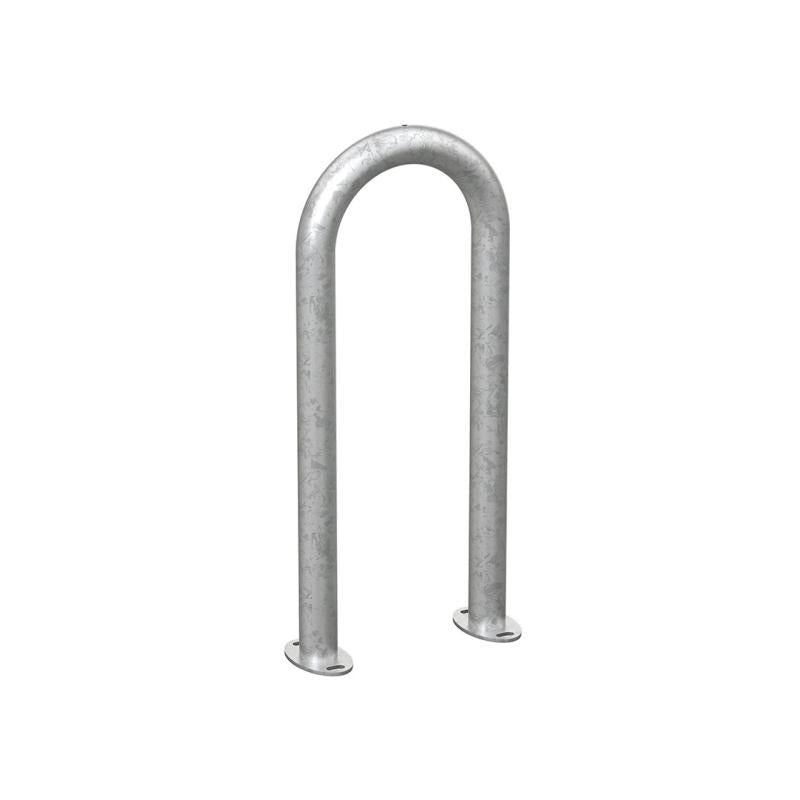

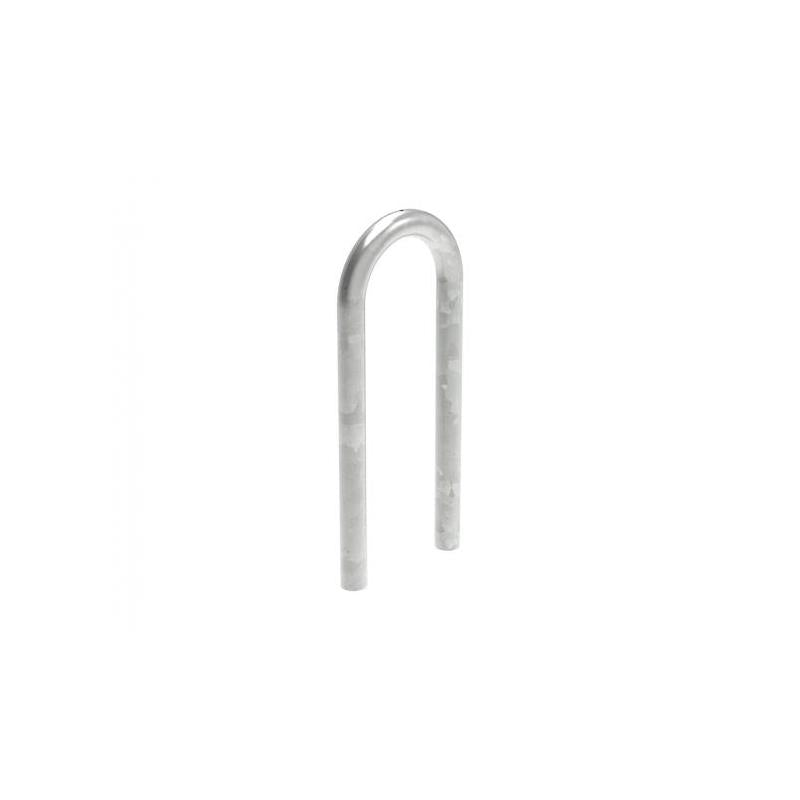

50mm Version
Construction: Made from 50mm diameter steel tubing.
Dimensions: 300mm overall width and 870mm total height if concreted, or 690mm height when mounted on base plates.
Finish Options:
Galvanised finish for corrosion resistance.
Galvanised and painted finish available in a choice of 10 colours for aesthetic versatility.
Installation: Can be concreted directly into the ground or installed on base plates for flexibility.

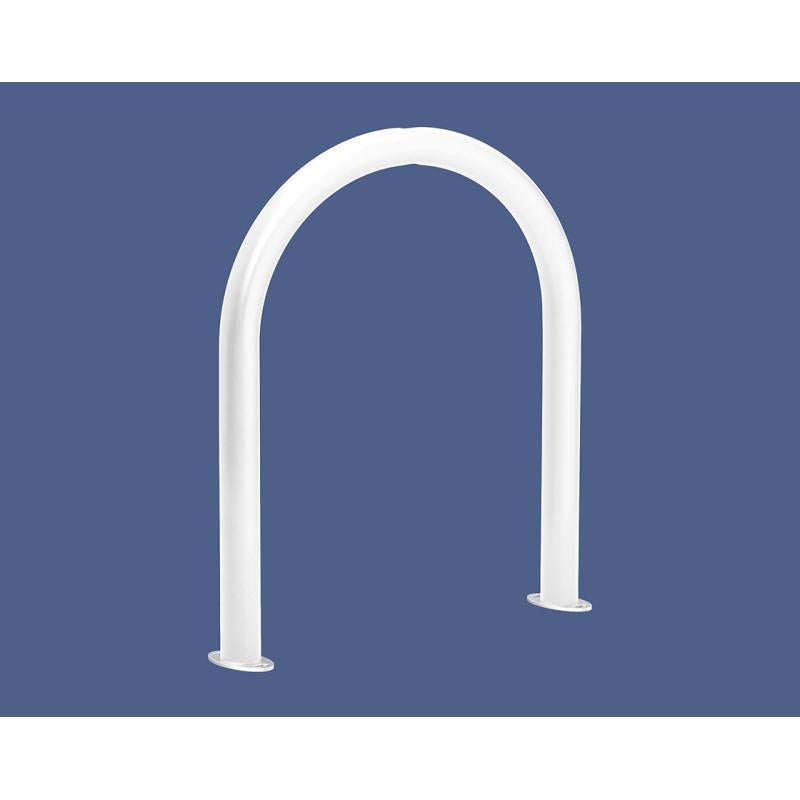

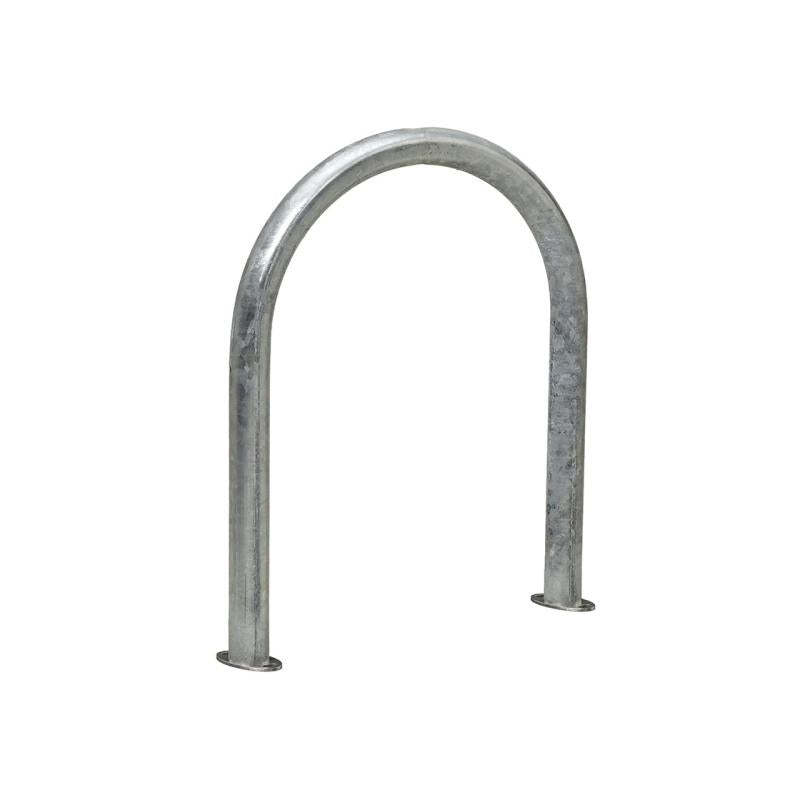

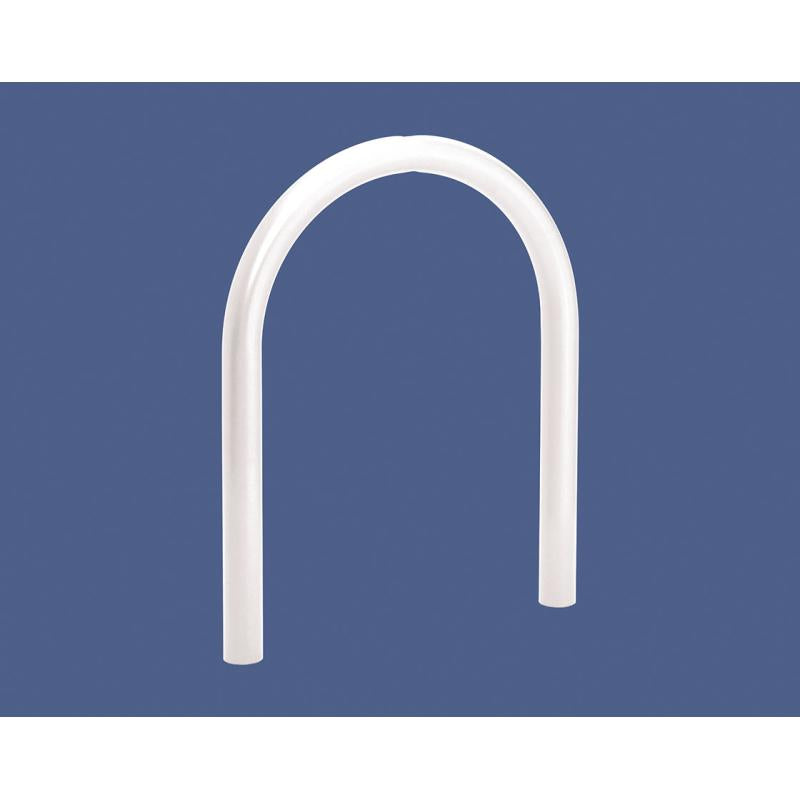

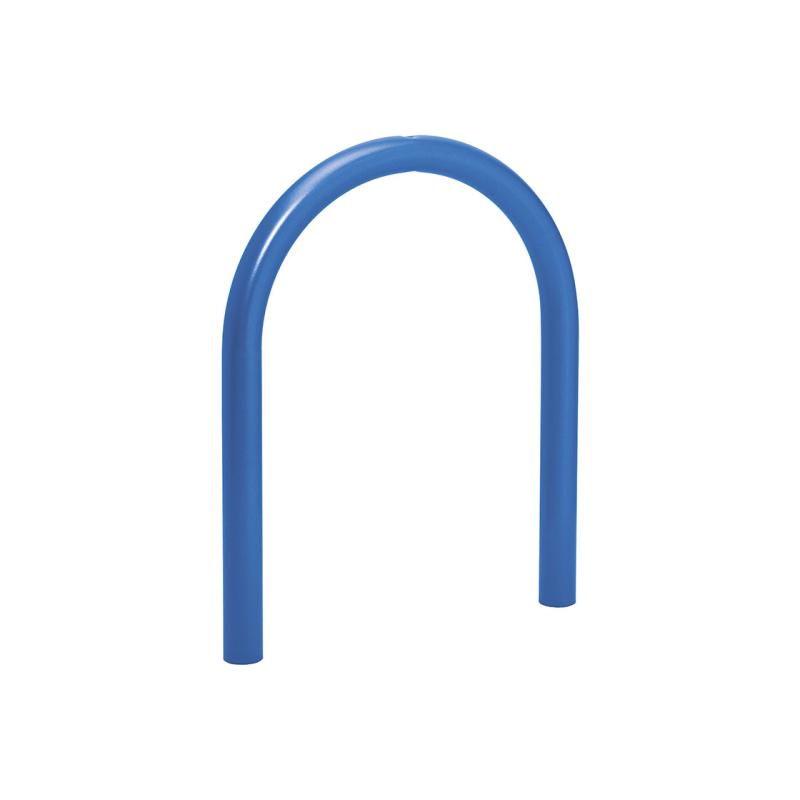

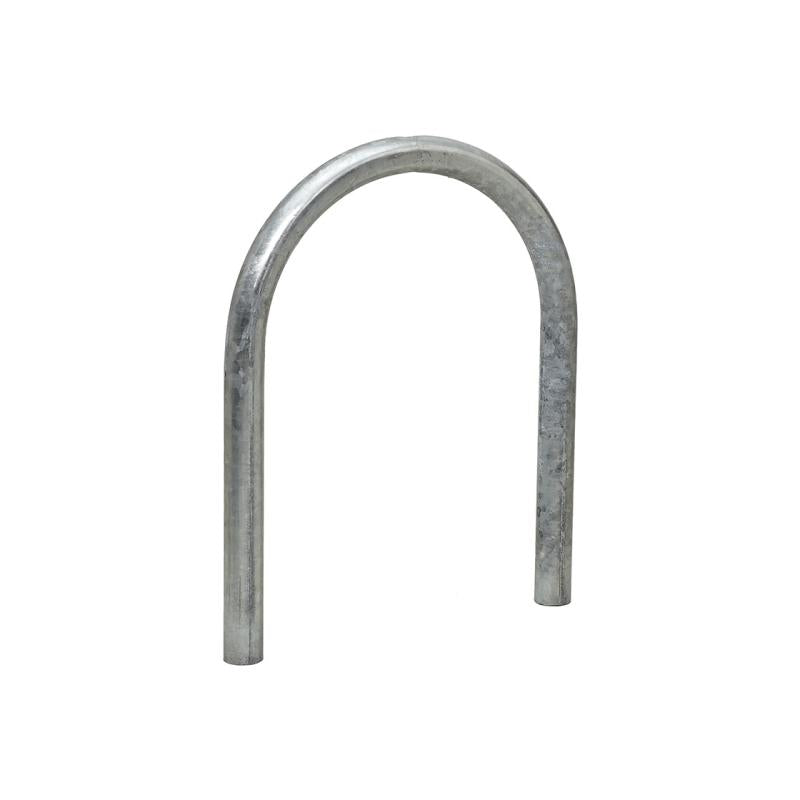

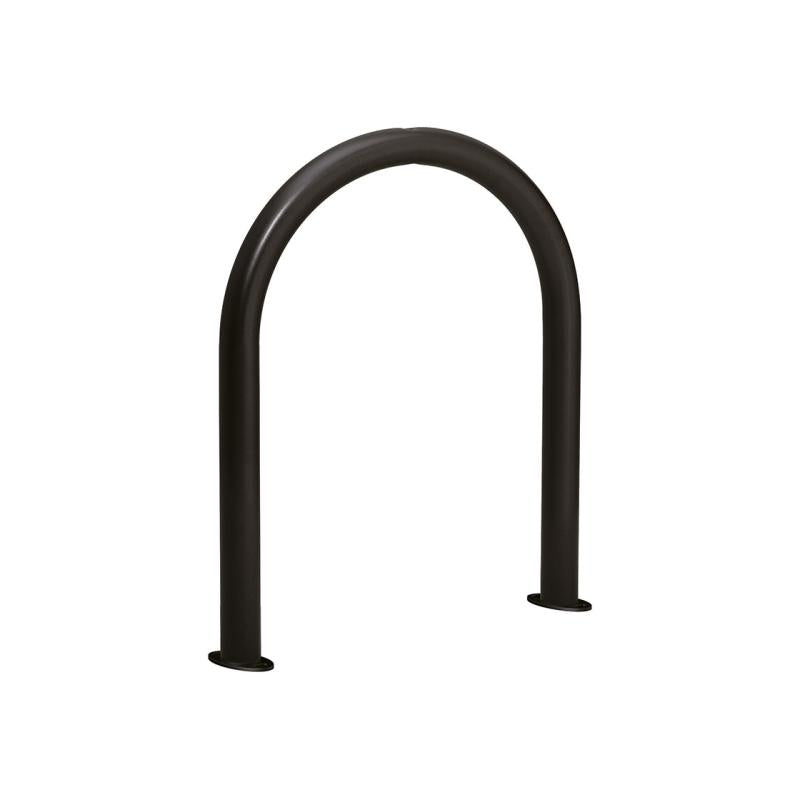

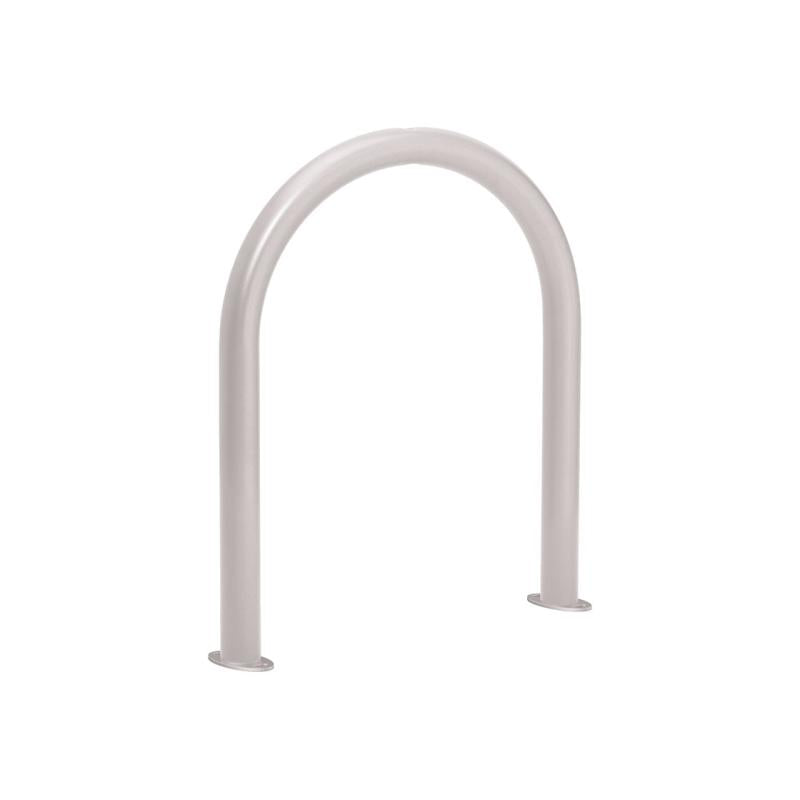

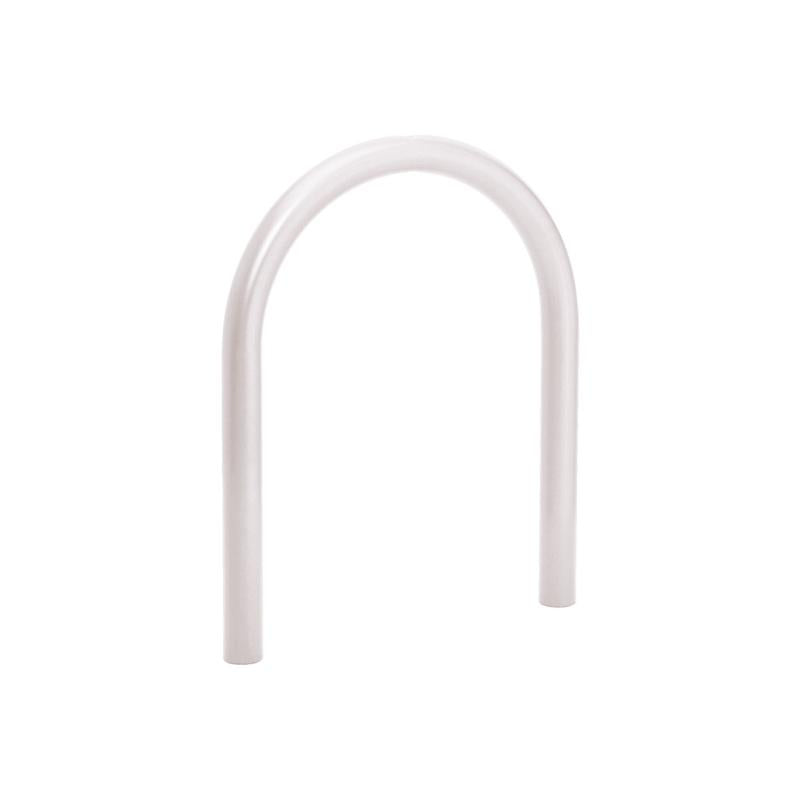

60mm Version
Construction: Features60mm diameter steel tubing for enhanced durability.
Dimensions: 635mm overall width and 870mm total height if concreted, or 690mm height when mounted on base plates.
Finish Options:
Galvanised finish for excellent resistance to weathering.
Galvanised and painted finish in a choice of 10 colours, ideal for customising to your environment.
Installation: Designed for concreting into the ground or using base plates, ensuring secure placement.
Key Features
Two Versions: Choose between 50mm or 60mm diameter steel tubing based on your protection needs.
Customisable Finish: Select from galvanised or galvanised and painted options in 10 colours.
Versatile Installation: Options for concreting directly into the ground or installing on base plates.
Durable Design: Engineered to withstand impacts, ensuring long-term reliability.
Why Choose the U-Shaped Protection Barrier?
The U-Shaped Protection Barrier is a versatile and highly durable solution for safeguarding structures and equipment. With multiple size and finish options, it is adaptable to any environment, combining practicality with a customisable design.
