2700mm wide x 2097mm high x 2323mm deep (initial unit - extended units also available)
100 x 60mm rear steel structure, with 40 x 40mm front verticals
Galvanised and painted in a choice of 10 colours
Anti-UV treated 10mm cellular polycarbonate panelled roof with 50 x 30mm steel tube crossbars
Optional rear and side cladding (10mm cellular polycarbonate with aluminum frame)
Optional extension units on request
Installed by concreting directly into the ground with height adjustable legs on base plates for side cladding
Lead time: 6 weeks
Version
Code
Weight

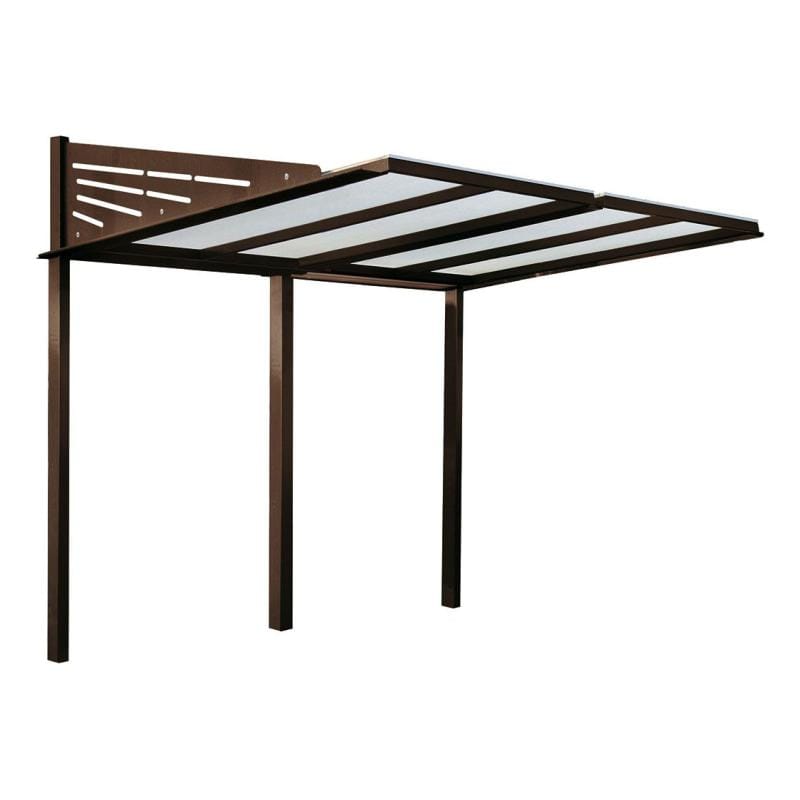

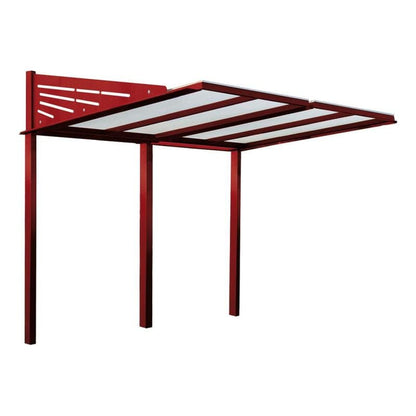

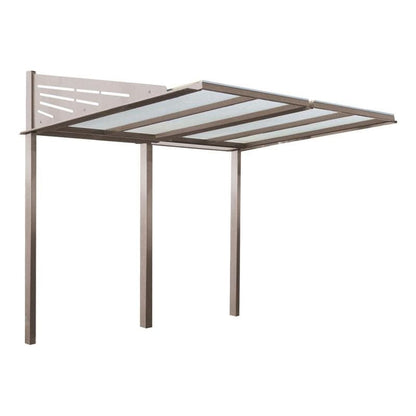

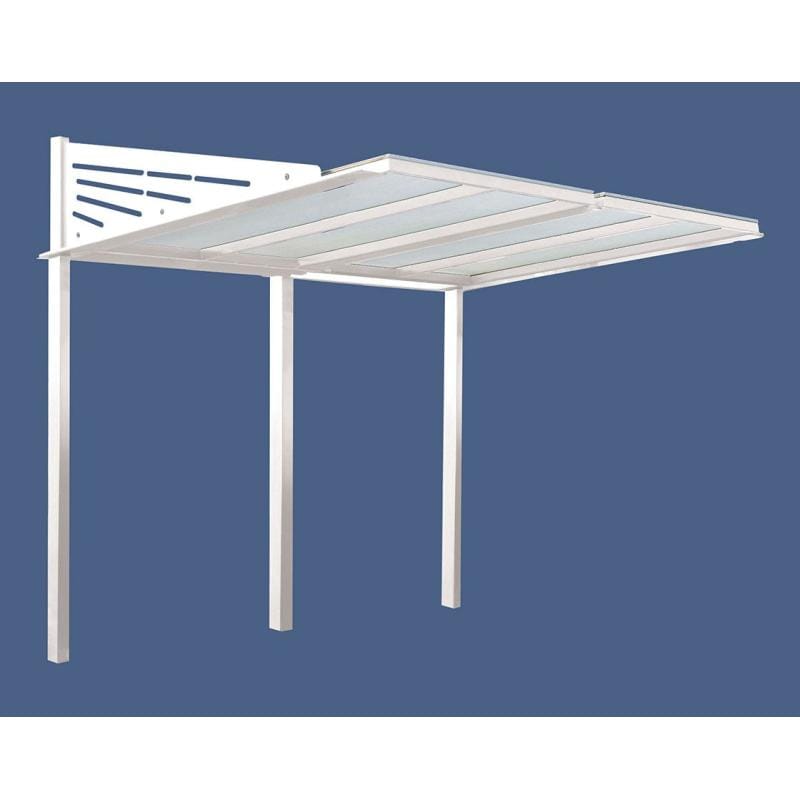

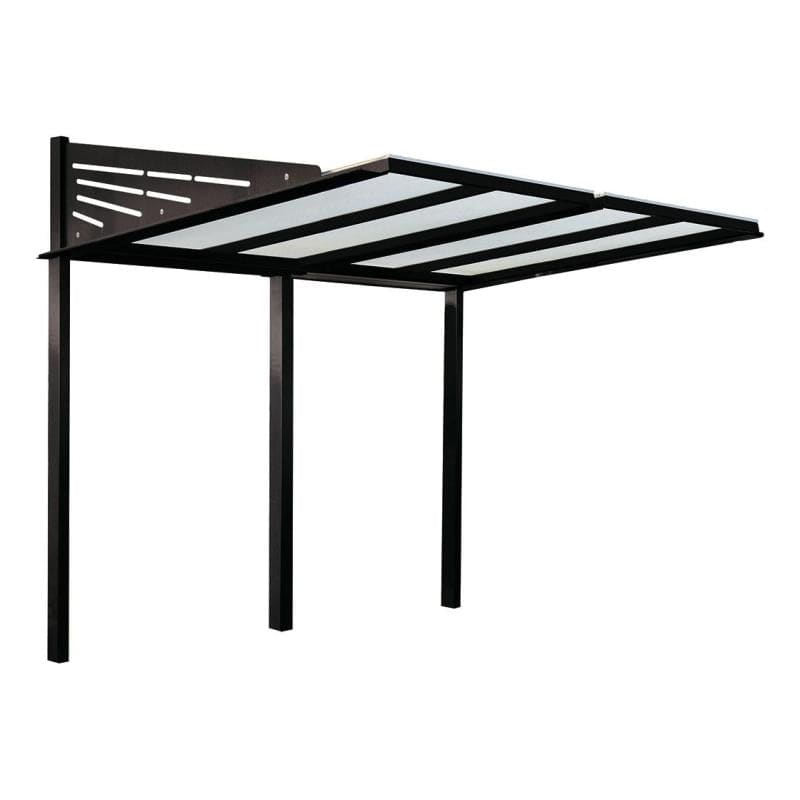

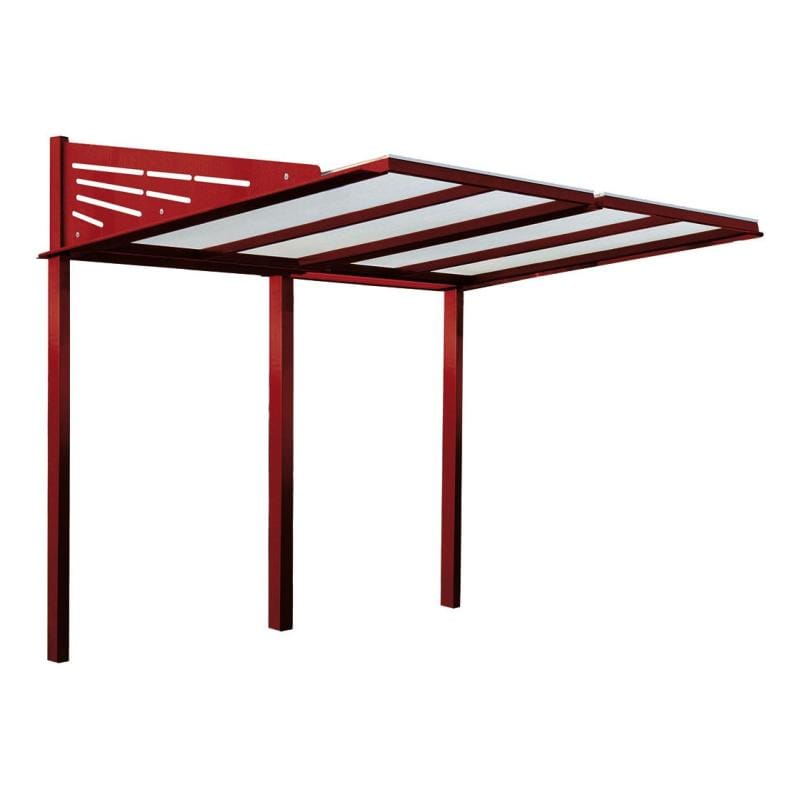

Single Unit with no cladding
529610 + 529611
270kg

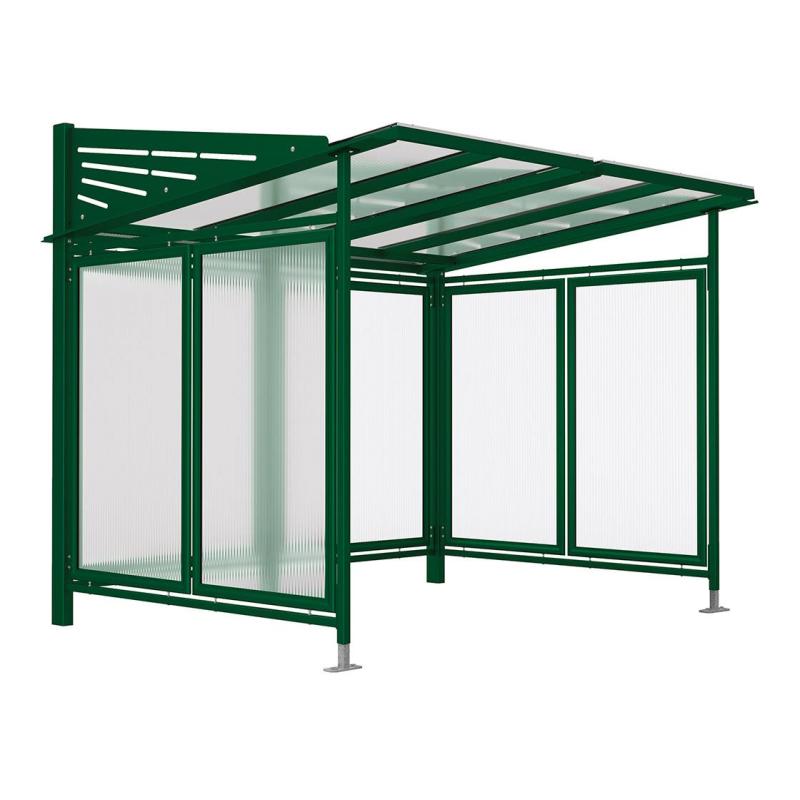

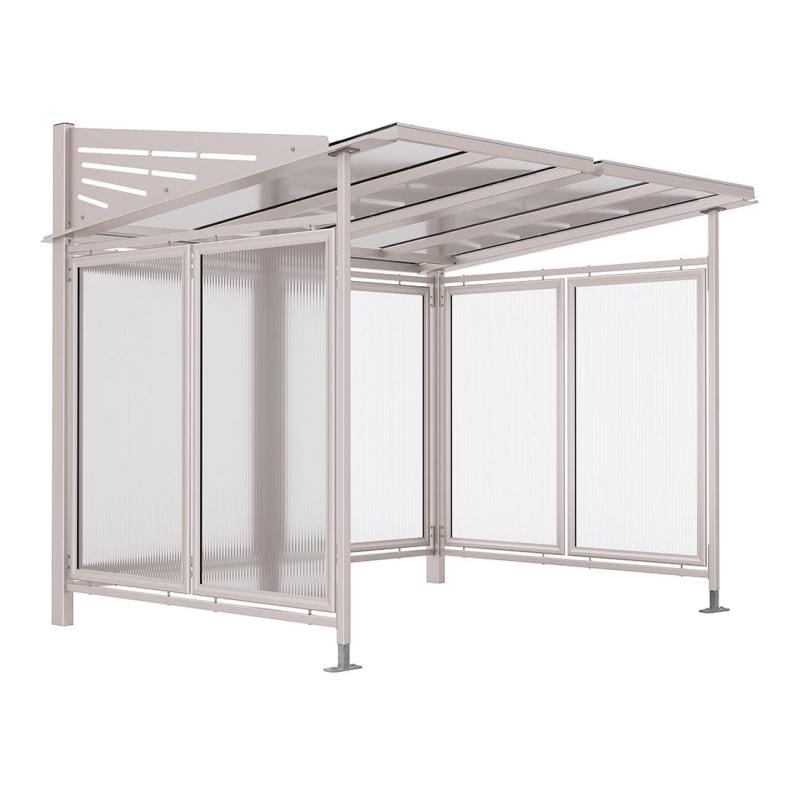

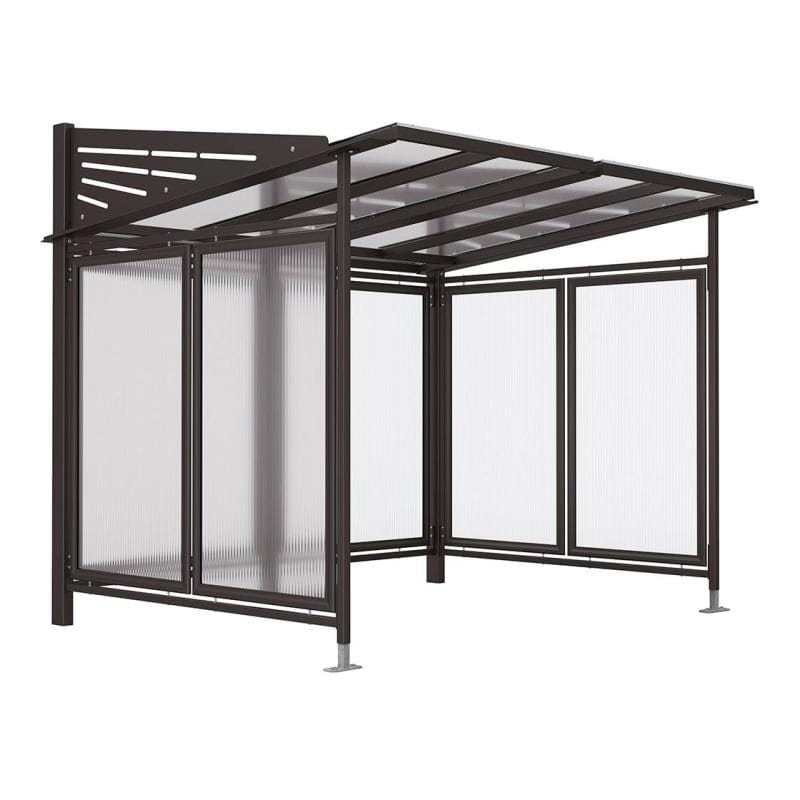

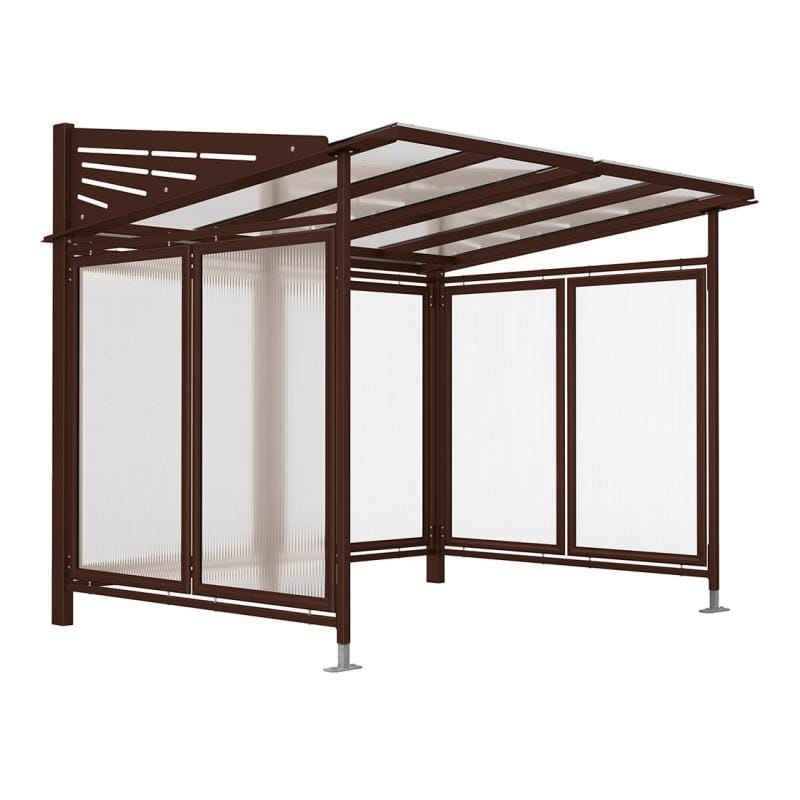

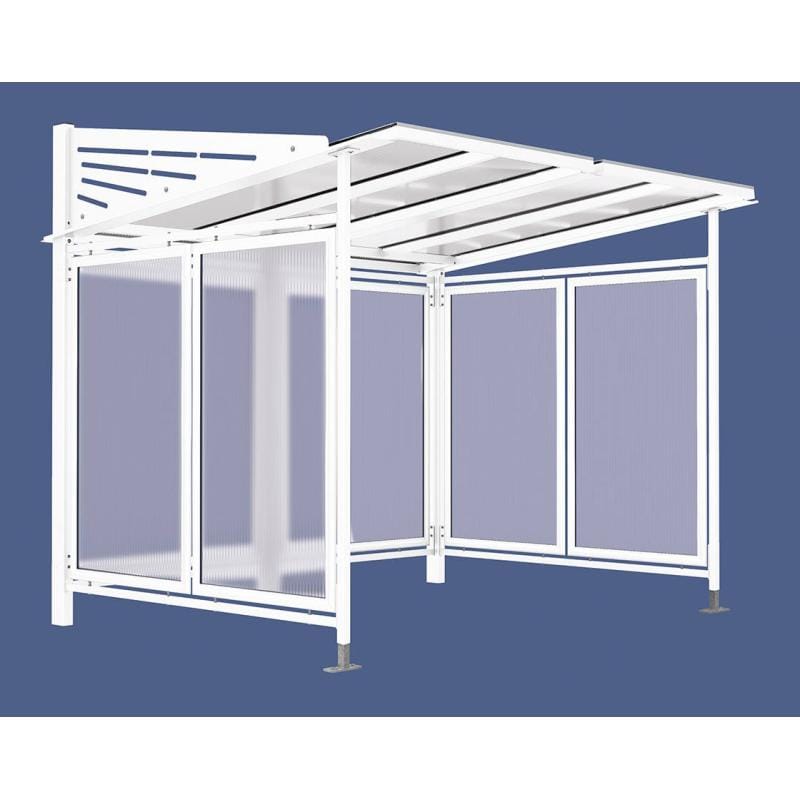

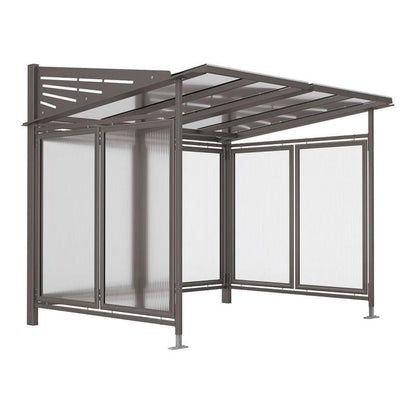

Single Unit with full cladding
529613
389kg

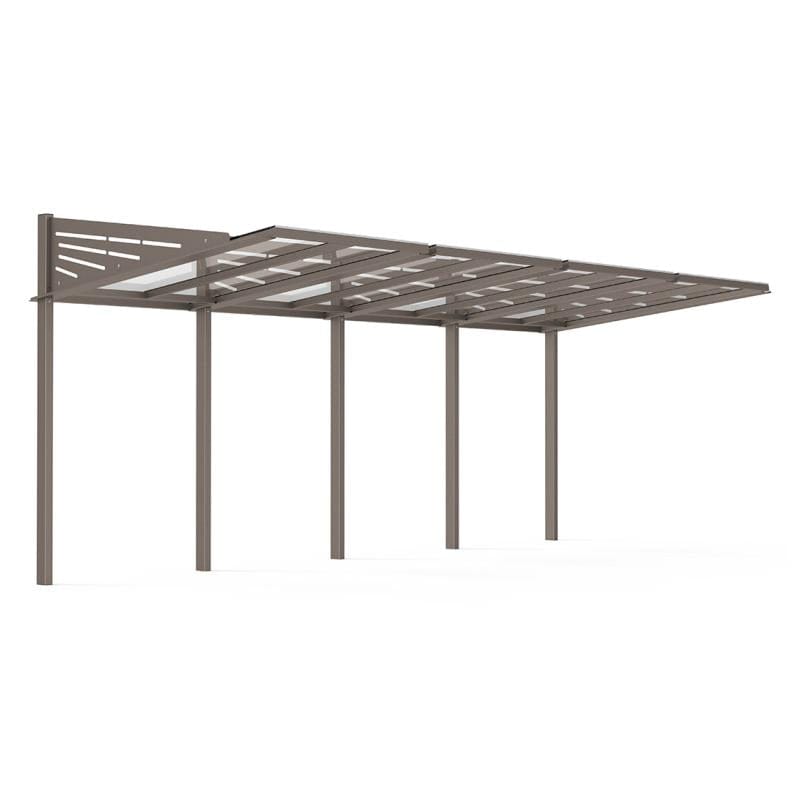

Extended Unit (no cladding)
529610 + 529611(x2)
580kg

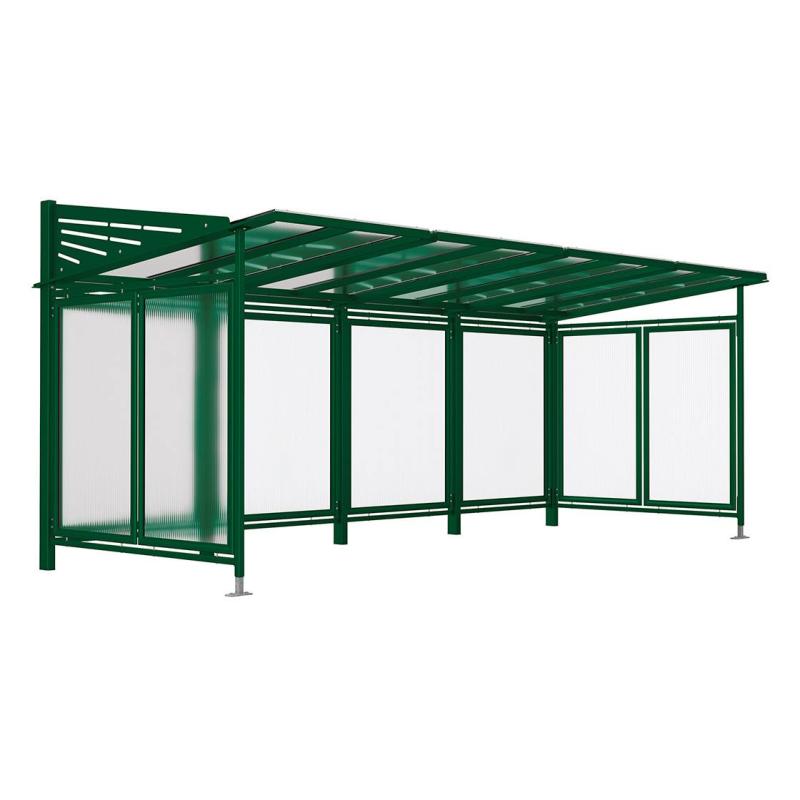

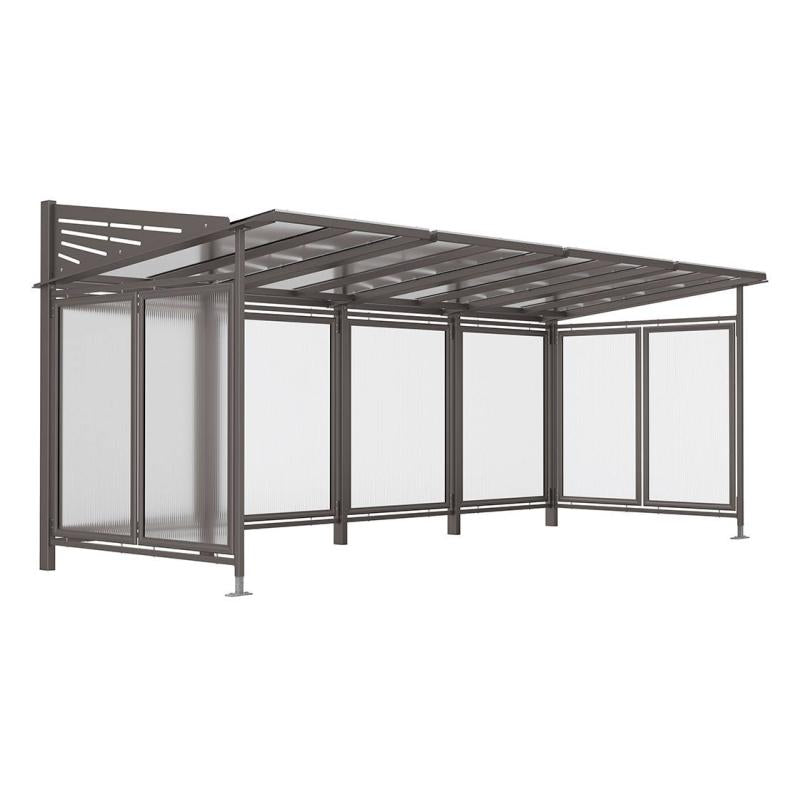

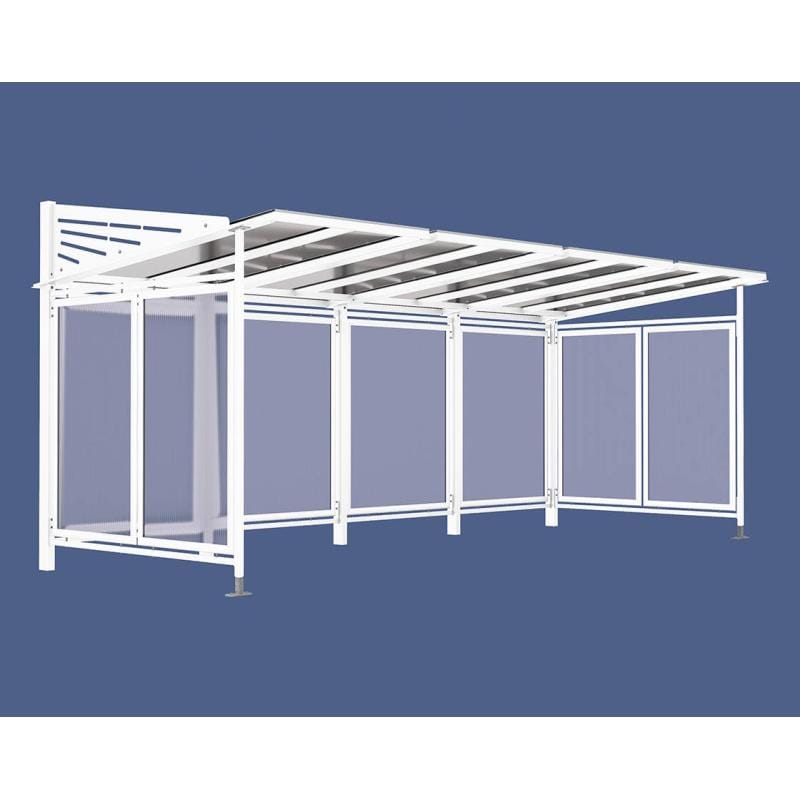

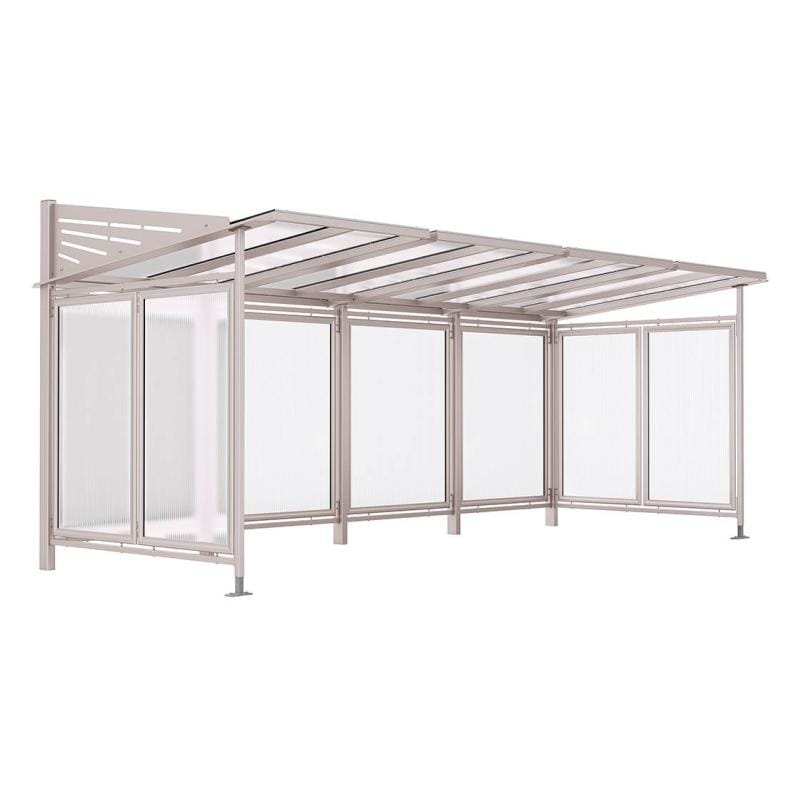

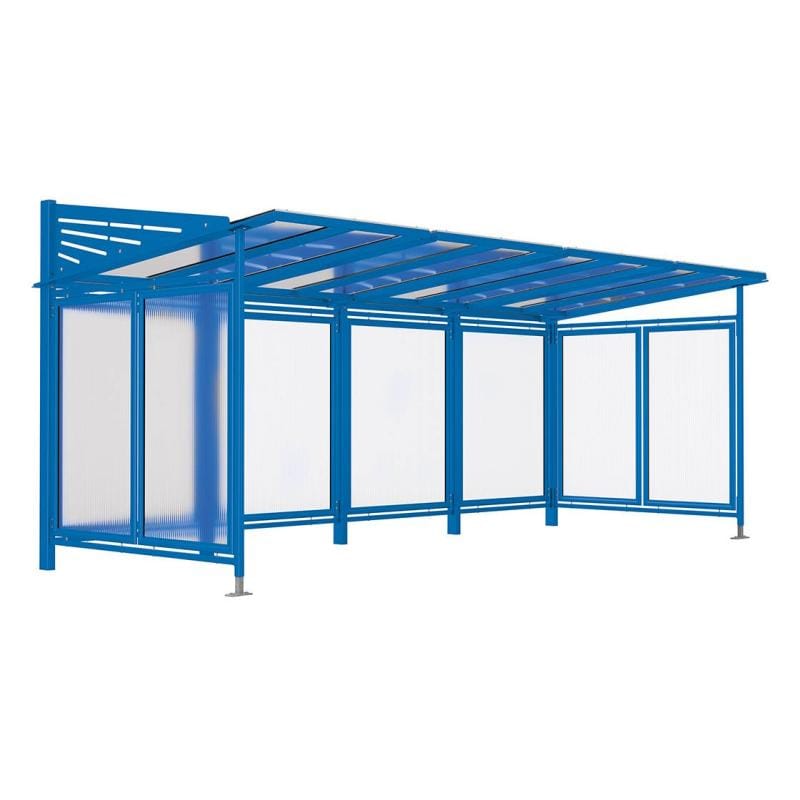

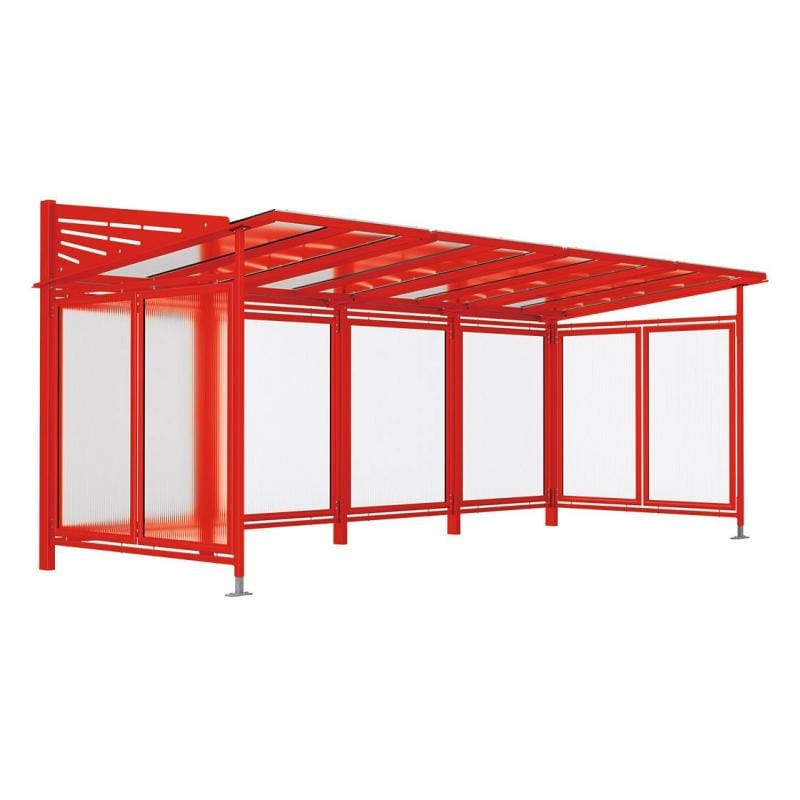

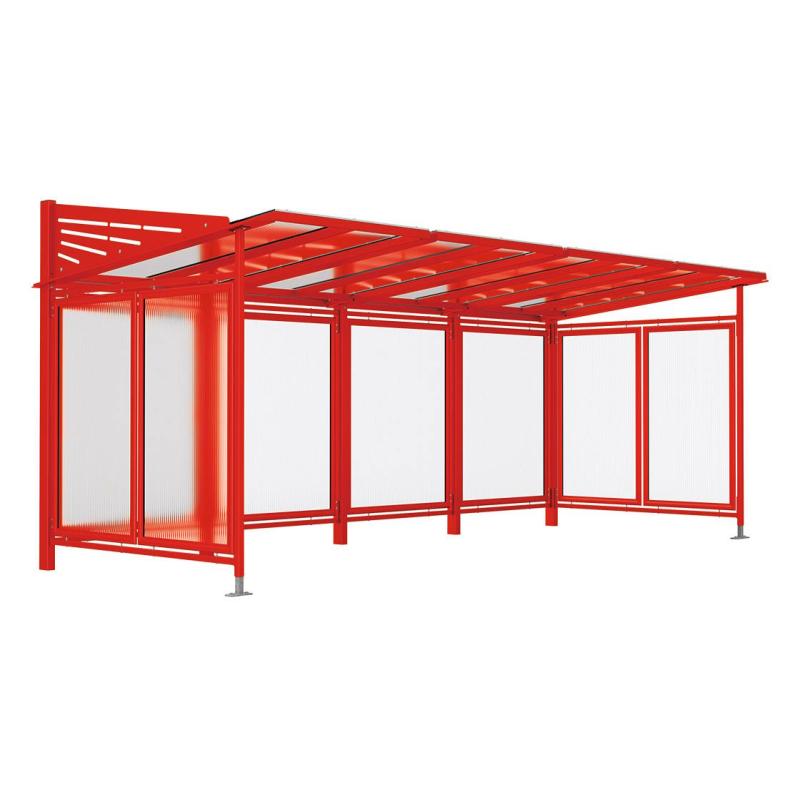

Extended Unit (with cladding)
529614
692kg
Product Description

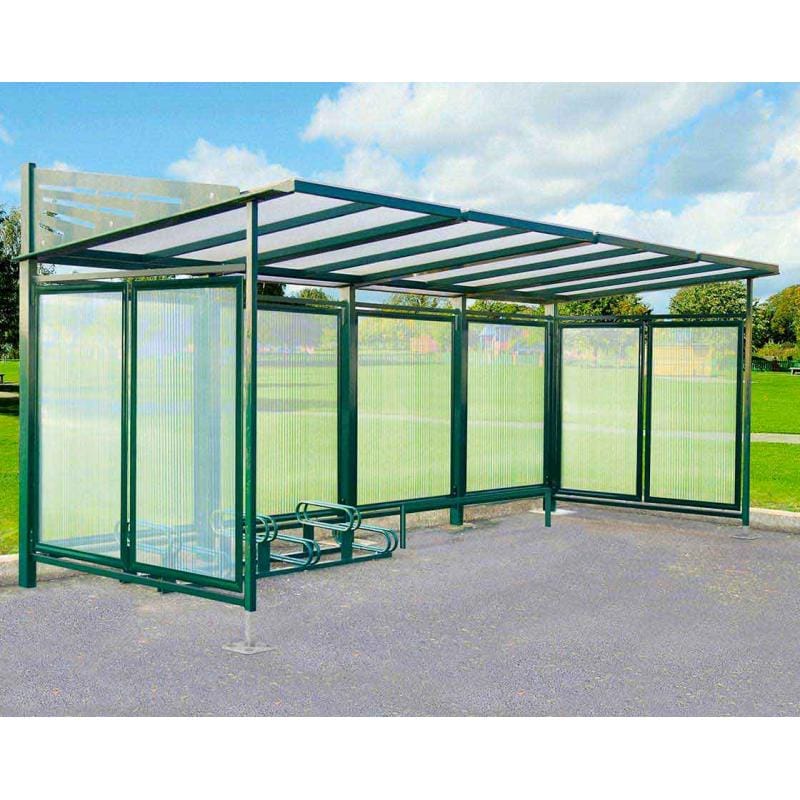

The Conviviale Bicycle Shelter provides an attractive, robust, and weather-resistant solution for bike storage in public and private spaces. Its stylish design and customisable features make it ideal for high-traffic areas such as schools, parks, or corporate campuses, where reliable bicycle protection is essential.
Key Features
Dimensions: The initial unit of the Conviviale Bicycle Shelter measures 2700mm in width, 2097mm in height, and 2323mm in depth. Extension units are available on request, allowing for flexibility in accommodating more bicycles as needed.
Steel Structure: The rear structure is made from 100 x 60mm steel, while the front verticals are 40 x 40mm steel, providing a sturdy framework. The structure is galvanised and painted in a choice of 10 colours, ensuring both durability and a sleek aesthetic that complements its surroundings.

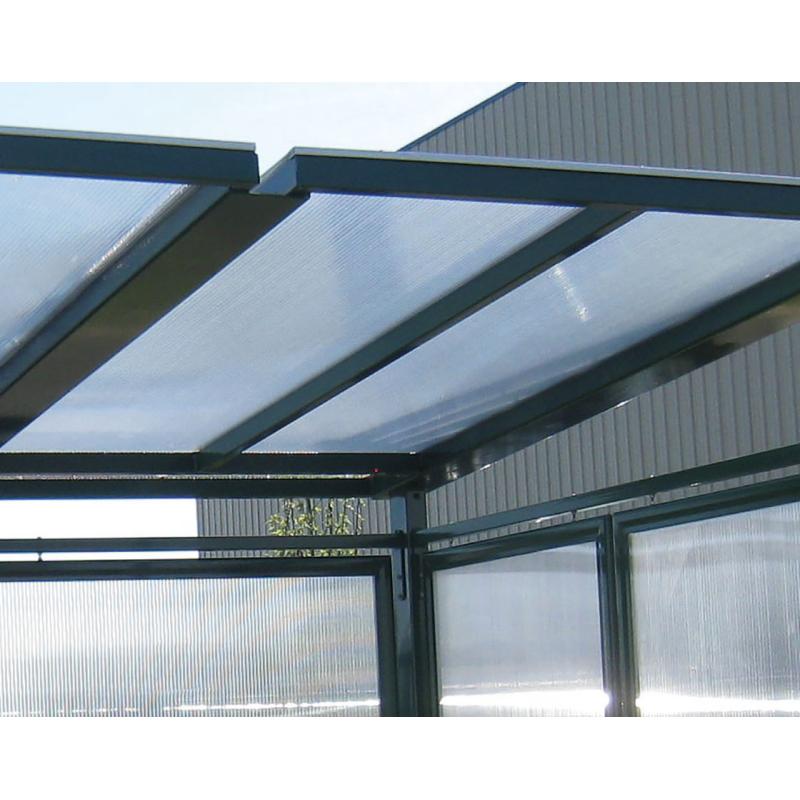

Polycarbonate Roof: The shelter features an anti-UV treated 10mm cellular polycarbonate roof, providing excellent protection from the elements. The roof is supported by 50 x 30mm steel tube crossbars, ensuring stability and long-term performance.

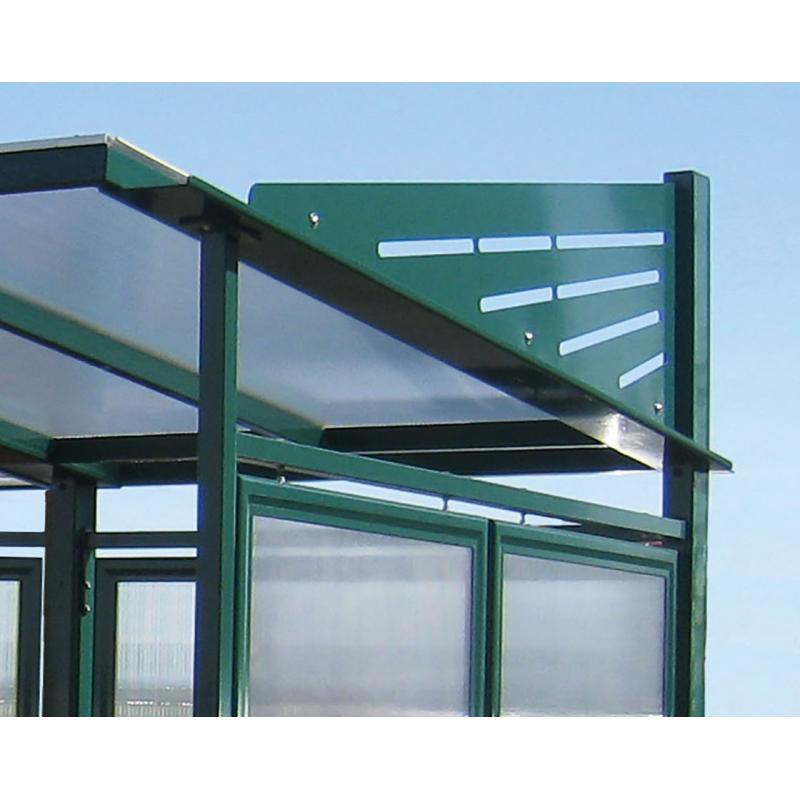

Optional Cladding: The Conviviale shelter comes with optional rear and side cladding made from 10mm cellular polycarbonate with an aluminium frame. This cladding provides extra protection against wind and rain, ensuring that bicycles are shielded from the elements on all sides.

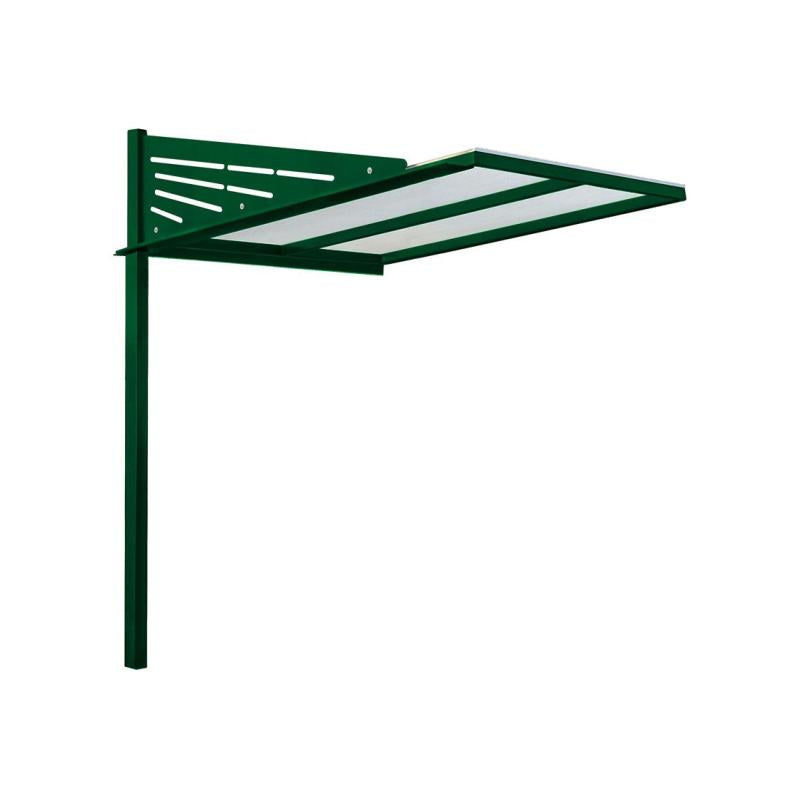

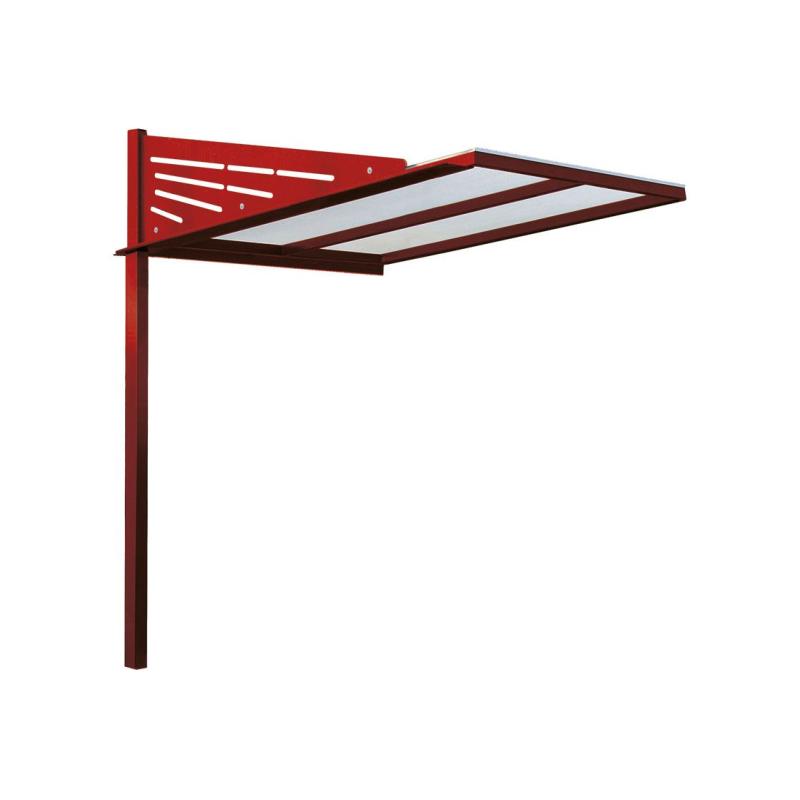

Optional Extension Units: Additional extension units are available upon request, allowing for the expansion of the shelter to accommodate more bicycles. Please contact our Sales Team for more information about the available options and configurations.
Installation: The shelter is designed for installation by concreting directly into the ground, ensuring a stable and secure structure. Height-adjustable legs on base plates are included for side cladding, allowing for precise installation and level alignment.
Customisation Options
Colour: Choose from a selection of 10 colours for the galvanised and painted steel frame to suit your design requirements.
Cladding: Optional rear and side cladding are available to provide additional shelter and privacy for bike storage, made from high-quality polycarbonate with an aluminium frame.
Extension Units: Extend the shelter to accommodate more bicycles with optional extension units. Please contact our Sales Team for more information on availability and customisation.
Why Choose the Conviviale Bicycle Shelter?
The Conviviale Bicycle Shelter offers a high-quality, secure, and stylish solution for bike storage. Its durable steel structure, UV-protected polycarbonate roof, and optional cladding make it ideal for various environments, from urban spaces to educational institutions. The ability to extend the shelter with additional units makes it an adaptable choice for growing bicycle storage needs.
