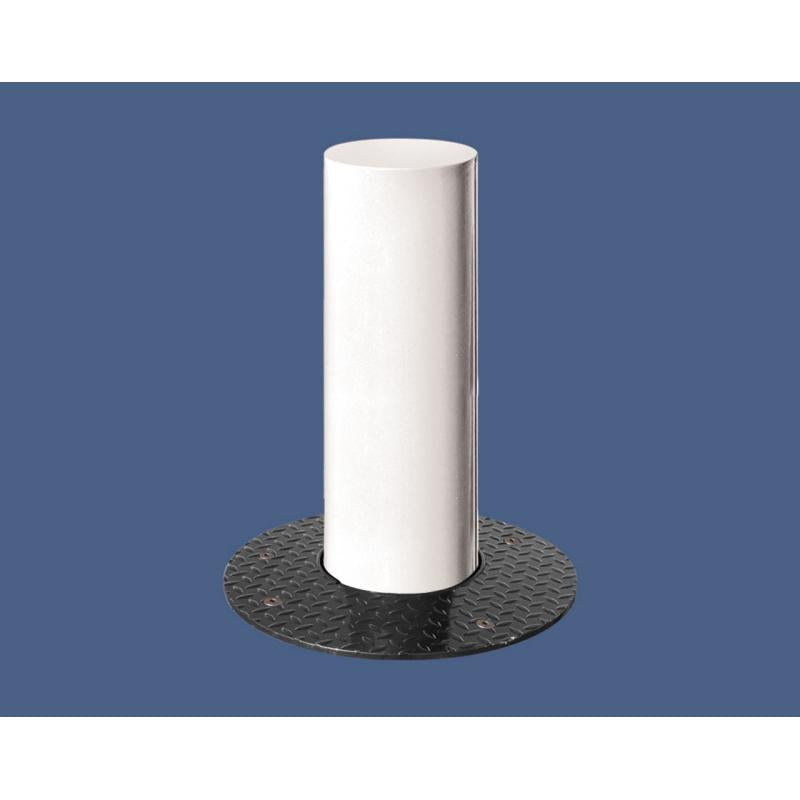

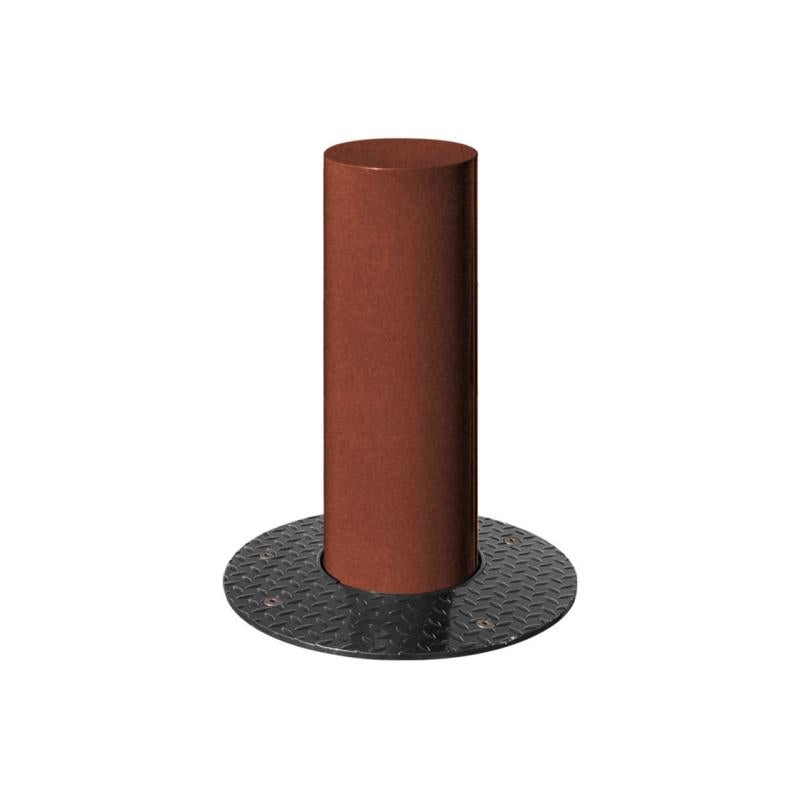

Barcelona Retractable Steel Bollard

• See below table for size information
• 3mm thick tube construction, 160mm, 220mm or 270mm in diameter
• Zinc primed finish, painted in a choice of colours

• Concreted directly into ground
• Automatic, self-locking system made from stainless steel
• Standard lock using 11mm triangle key
• Steel ground cover, 460mm in diameter, galvanised and lacquered black with non-slip texture
• Central and side guard rails, powered by gas piston, slides bollard vertically within chamber
• Galvanised steel tube casing with lift eyelets for quick and easy install
• Casing dimensions: 1030mm high x 545mm wide


Lead time: 7 weeks

Diameter	Code	Height (Above Ground)	Weight
160mm	206784	545mm	150kg
220mm	206783	605mm	162kg
270mm	206782	705mm	167kg



Product Description

The Barcelona Retractable Steel Bollard is an advanced, practical solution designed for environments requiring high security and flexibility. With its robust construction, self-locking system, and automatic vertical movement, this bollard is perfect for controlling access in areas that need temporary closure or varying levels of access.

Height and Dimensions

Available in three diameter options—160mm, 220mm, and 270mm—the Barcelona Retractable Steel Bollard ensures versatility in meeting different size requirements. Its design accommodates various environments, from urban streets to commercial properties and high-traffic zones.

Heavy-Duty Construction

The bollard is made from 3mm thick steel tube, providing excellent strength and durability. It is built to withstand demanding environments and regular usage, making it an ideal choice for high-security and high-traffic areas.

Premium Finish

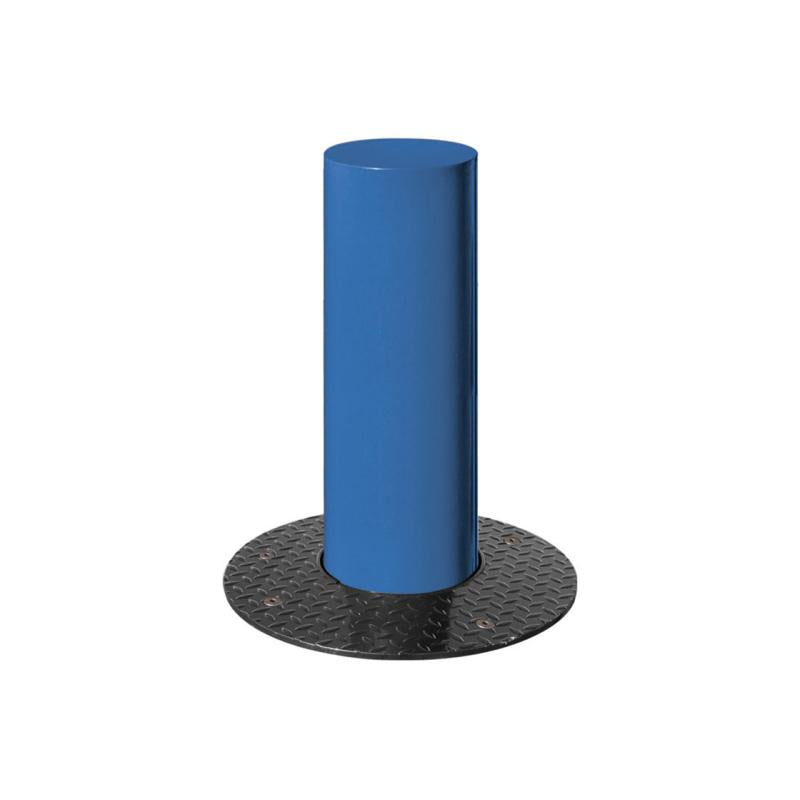

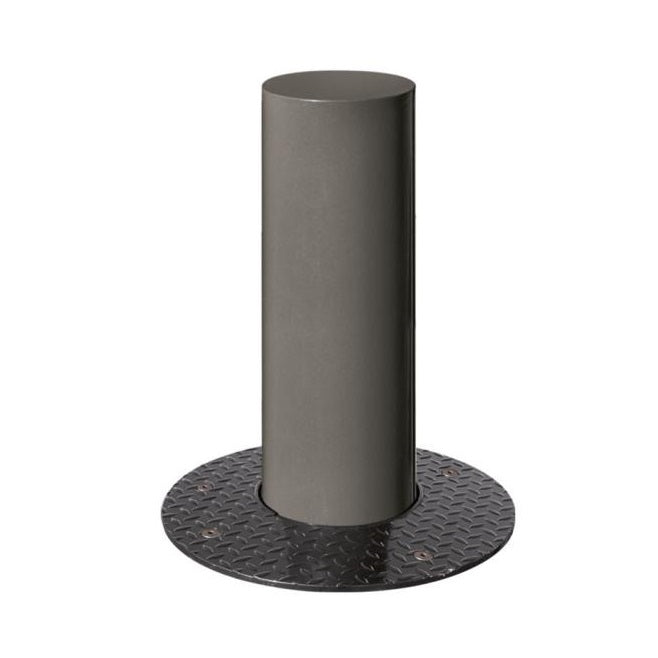

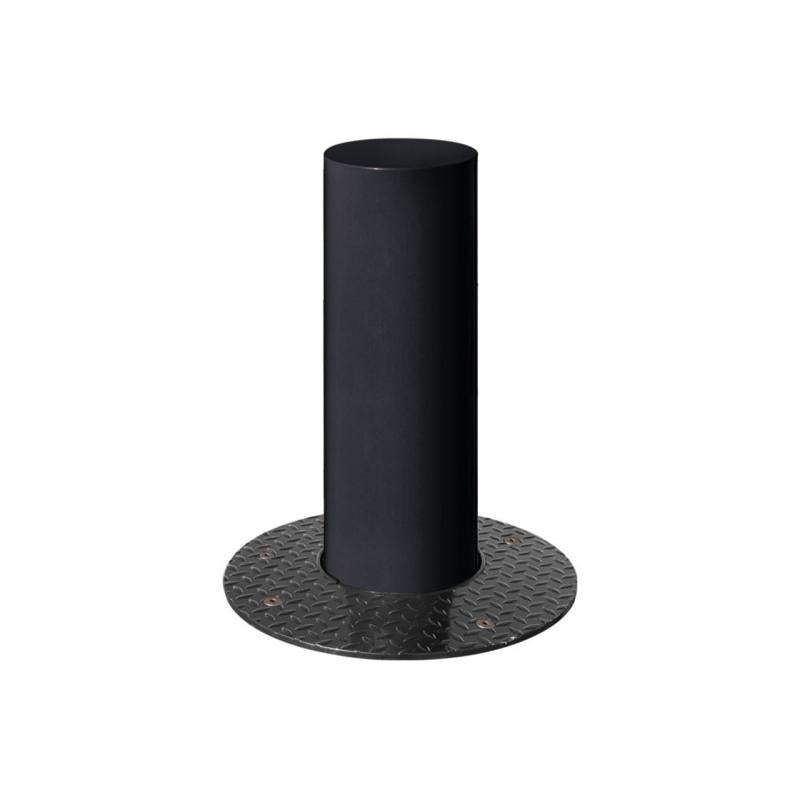

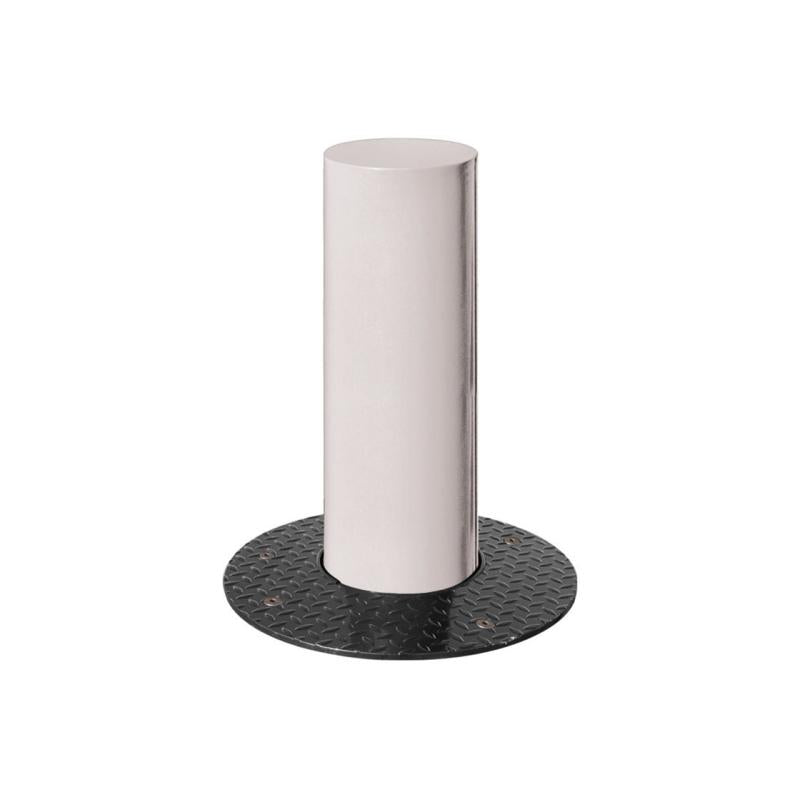

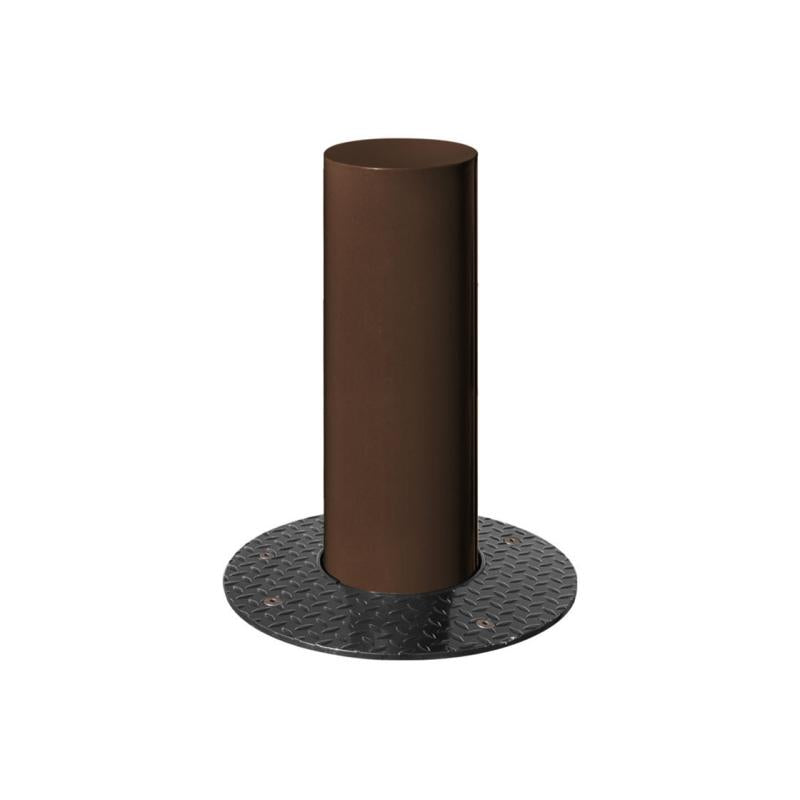

The bollard is zinc primed and painted in a choice of colours, offering superior protection against corrosion and harsh weather conditions. The customisable finish allows for integration with various aesthetics, from corporate branding to city landscapes.

Automatic Self-Locking System

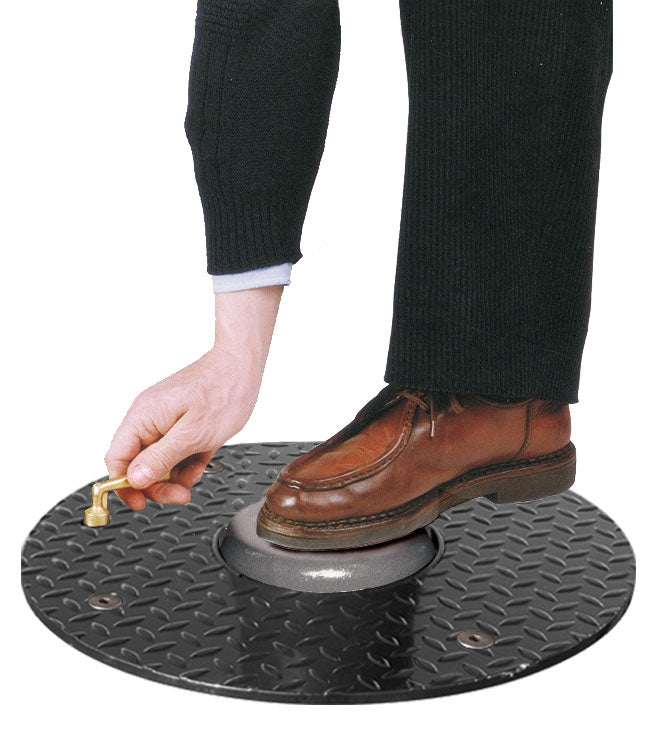

This bollard features an automatic, self-locking system made from stainless steel. This ensures the bollard remains securely in place when in the upright position. It also includes a standard lock that can be operated with an 11mm triangle key for additional security and control.

Ground Cover and Rails

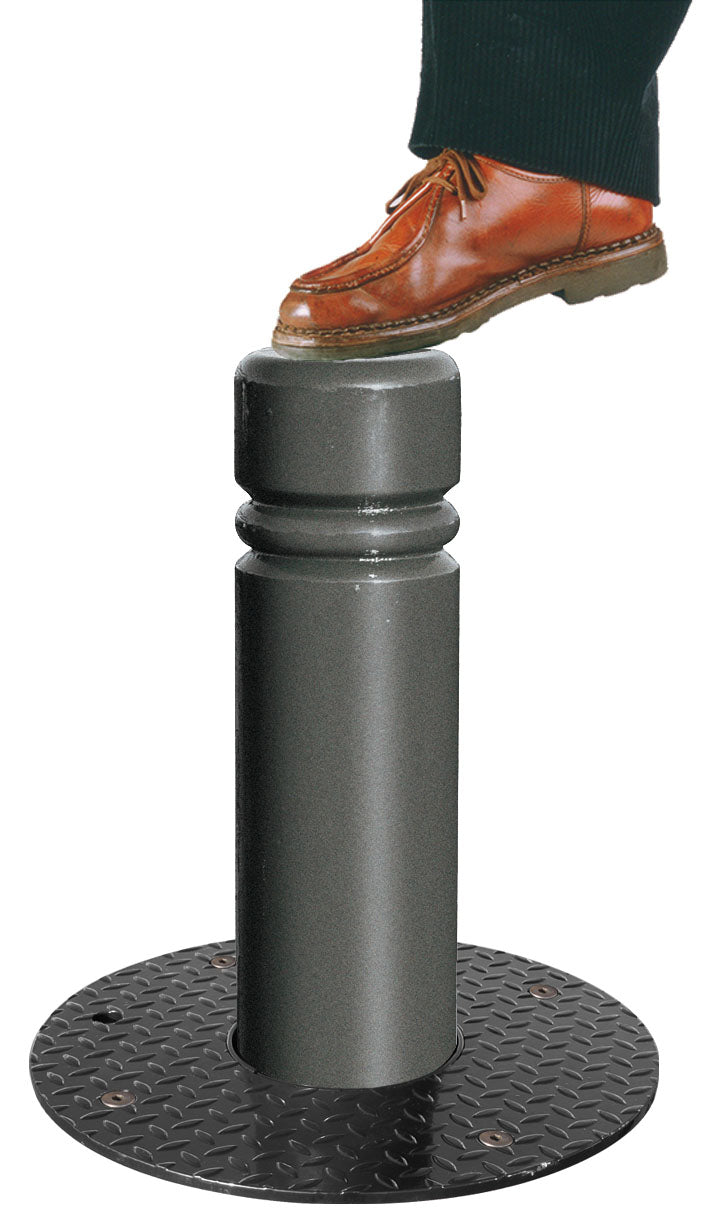

The bollard includes a steel ground cover, 460mm in diameter, which is galvanised and lacquered black with a non-slip texture for added safety. It also has central and side guard rails powered by a gas piston, allowing the bollard to slide vertically within its chamber.

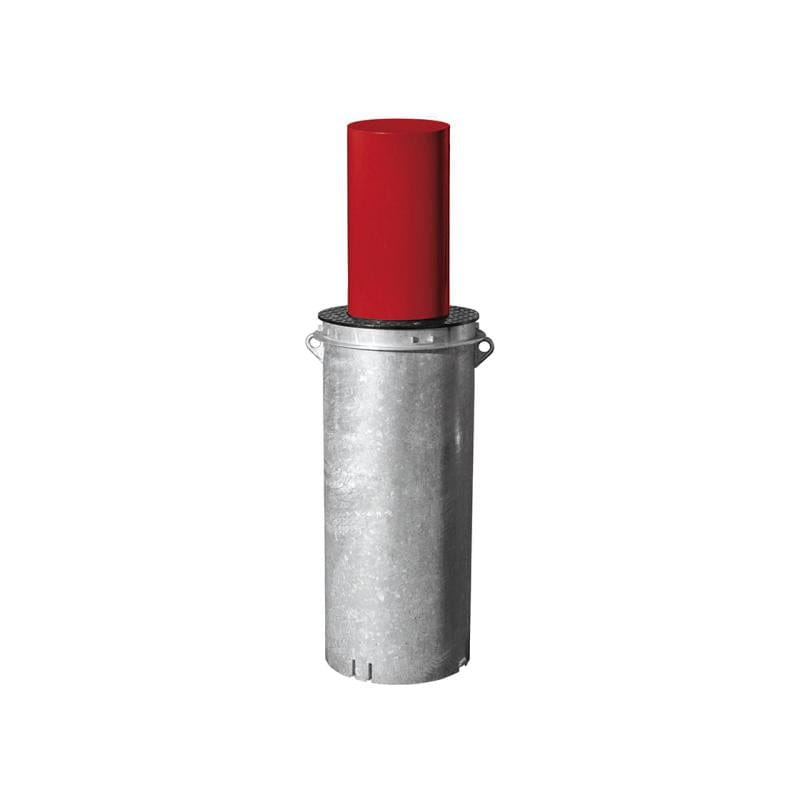

Galvanised Steel Casing

The bollard is housed in a galvanised steel tube casing, which includes lift eyelets for quick and easy installation. The casing dimensions are 1030mm high by 545mm wide, providing a compact and secure housing for the bollard mechanism.

Secure Installation

The Barcelona Retractable Steel Bollard is designed to be concreted directly into the ground, ensuring a strong and stable foundation. The ground cover and casing provide additional protection and help integrate the bollard seamlessly into its surroundings.

Applications

The Barcelona Retractable Steel Bollard is ideal for areas where access control needs to be flexible, such as parking lots, pedestrian zones, or spaces requiring temporary closure or restrictions. It is perfect for environments with changing access requirements or locations that need to accommodate both vehicle and pedestrian traffic.

Why Choose This Bollard?

With its advanced retractable design, self-locking system, and robust construction, the Barcelona Retractable Steel Bollard offers unmatched functionality and security. Its versatility, ease of use, and high-performance design make it the ideal choice for locations requiring reliable and flexible access control.

Choose the Barcelona Retractable Steel Bollard for a secure, efficient, and stylish solution that adapts to the demands of your environment.
